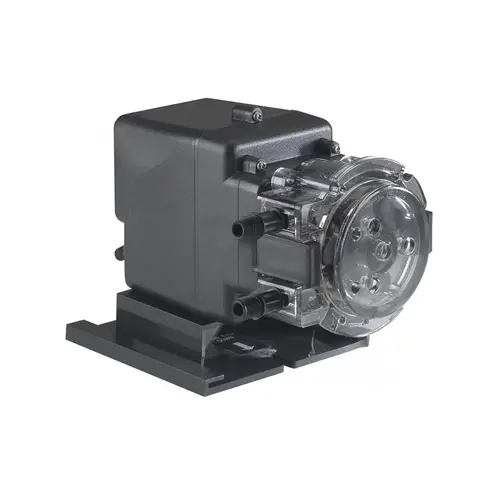

Stenner Pumps 85MFL5A3SUAA Classic 85 85MP5 Single Head Fixed Chemical Injection Pump; 3/8 Inch, 85 gpd, Polycarbonate, 120 V-60 Hz, 0-25 psi
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
Stenner Pumps 85MFL5A3SUAA 3/8"classic 85 Single Head Fixed Chemical Injection Pump 25psi 85gpd
Item #: 85MFL5A3SUAA by STENNER PUMP COMPANY
UPC #: 840034710458
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 3-point roller design assists in anti-siphon protection
- The pump is built with three detachable components - the motor, feed rate control and the pump head that can be separated without tools
- Continuous duty cycle
- Shaded pole, Class B motor
- HDPE pump head rollers
- Oil impregnated sintered bronze roller bushing
- SJTOW power cord
- Pellathane® CV Duckbill with Versilon™ tube
- Polypropylene pump head latches
- Stainless steel fasteners
- PP or type 1 rigid PVC connecting nuts
- Pump head requires no valves, allows for easy maintenance
- NSF listed PP or type 1 rigid PVC body with type 1 rigid PVC cap suction line strainer
- White tubing
- Self priming against maximum working pressure, foot valve not required
- Pump does not lose prime or vapor lock
- Pumps off-gassing solutions and can run dry
- Output volume is not affected by back pressure
- Injection check valve included with models rated up to 100 psi (6.9 bar)
- Easy and fast tube replacement without tools with the QuickPro® pump head
- Pump tubes and pump heads interchange between models
Dimension
8 Inch L x 5.3 Inch W x 6 Inch H
Application
For constant pressure (variable speed) well pumps, poultry and livestock houses, irrigation and systems with demand based backup wells
Type
Single Head
Shipping Dimensions
12.50x8.00x9.50
Includes
Accessory Kit
Brand
Stenner Pumps
Phase
1-Phase
Department
FEEDERS | CHLORINATORS | SANTIZERS
AmperageRating
1.7 A
CordType
SJTOW, NEMA 5/15
FlowRate
85 gpd
FrequencyRating
60 Hz
HousingMaterial
Polycarbonate
HP
1/30
Item
Fixed Chemical Injection Pump
MaximumSuctionLift
25 ft Vertical Lift
ModelNumber
85MP5
MotorRPM
26
OperatingTemperature
125 deg F
PressureRating
0-25 psi
StandardsApprovals
UL Listed, CSA Certified, WQA Certified according to ANSI/NSF 61, Conforms to ANSI/NSF 50
SuctionSize
3/8 Inch
VoltageRating
120 V
RPM
26
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Maximum Suction Lift
25 foot
Temperature Rating Max
125 degrees Fahrenheit
Commercial, Residential, or Professional
Commercial
Master Carton Quantity
1
Each Product Weight
7.55 pound
Pressure Rating Max
25 pounds per square inch
Temperature Rating Min
125 degrees Fahrenheit
Selling Package Depth
9.5
Minimum Sell Quantity
1
Frequency Rating (Hz)
60
Suction Size Inner Diameter
0.375 inch
Pressure Rating Min
0 pounds per square inch
Flow Rate Min
85 gal/day
Standards Approvals
CSA Certified,WQA Certified
Flow Rate Max
85 gal/day
