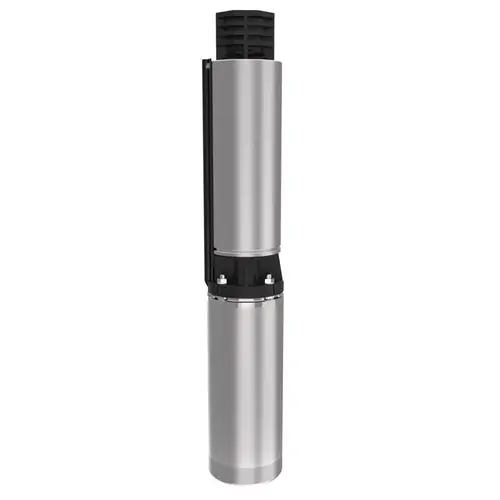

FP2232 Well Pump, 1-Phase, 20 A, 230 V, 1 hp, 1-1/4 in Connection, 300 ft Max Head, 15.6 gpm, Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

STA-RITE FP2232-13 FP2232 Well Pump, 1-Phase, 20 A, 230 V, 1 hp, 1-1/4 in Connection, 300 ft Max Head, 15.6 gpm, Stainless Steel

Item #: FP2232-13 by Flotec

UPC #: 022315100824

See reviewsSee reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • For 4 in inside diameter or larger wells
  • 4 in submersible pumps are the most economical, energy efficient pumps for 4 in wells or larger
  • Provide the optimum amount of water and pressure for general home and farm use
  • Pumps from depths of 150 ft
  • Floating stack design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing
  • Pumps up-to 10 gal per minute
  • Includes built-in check valve

Maximum Head

300 ft

Connection Size

1-1/4"

Frequency Rating

60 Hz

Connection Type

NPT

Current Rating

20 A

HP Rating

1 hp

Pressure rating

170 psi

Nomenclature

FP2232-13 SUBMERSIVE PUMP 1 HP

Material

Stainless Steel

Number of Phases

1

Height

4.6"

Volts

230 V

Depth

3.78"

Maximum Capacity

15.6 GPM

Width

3.78"

Weight

27 lb.

Warranty

3 year

Horsepower

1 HP

Powered By

AC

Maximum Temperature

140 °F

Pump Type

Submersible

Self Priming

Non-Self Priming

Agency Compliance

CSA and UL

Corrosion Resistant

Yes

Defective Code

A

Discharge Pipe Size

1-1/4"

Each Weight

32.600 LB

Hazardous Material

No

Maximum Discharge Flow

600 gph

Maximum Feet of Head

300 ft.

Minimum Temperature

40 °F

Pump Switch Type

Switchless

Returnable

Yes

Velocity

N

Wiring Configuration

2 wire

With Tank

No

Housing Material

Stainless Steel

Product Type

Well Pump

Performance Series

10 GPM

Product Overview
SUBMERSIBLE PUMP 1 HP 10 GPM
Specifications:

Includes: Detailed Owners Manual

Suitable for: 4 in ID or Larger Wells

4 in submersible pumps are the most economical, energy-efficient pumps for 4 in wells or larger. They provide the optimum amount of water and pressure for general home and farm use.
