The CRL Hot Melt Butyl Gunning System is compact and versatile. Its unique pumping action eliminates entrapped air in the sealant. The pump has a 10 lbs. (4.53 kg) tank capacity with a temperature range from 100°F to 425°F. CRL Hot Melt Butyl can be added while gunning. An Eight-Foot Flexible Hose with variable 350° to 450°F temperature control is coupled with a lightweight, heated, hand gun which features a swivel and trigger lock action. The Cat. No. SS96 does not use compressed air, and operates quietly. The mechanical and electrical systems contain few moving parts, resulting in less down time and low maintenance operation.
ELECTRICAL
Voltage - 115 VAC, 60 Hz with ground
240V Models Available on Special Order
Wattage - 1265 Watts
Motor Rating - 1/6 hp, gearbox
38 rpm output
Warm-Up Time - 45 to 60 minutes
FUNCTIONAL
Melt Rate - 8 lbs. (3.6 kg)/hour
Pump Output Rate (Maximum) - 40 lbs. (18.1 kg)/hour
Tank Temperature Range - 100-425°F(37-217°C)
Tank Capacity – 10 Lb. (4.5 kg)
Gun/Hose Temperature Range - 350-450°F (177-232°C)
Shipping Weight - 120 lbs. (54 kg)
Product Warning:
Read the owner's manual and all manufacturer's warnings before using this machine. The material that is dispensed from this unit can be in excess of 400°F and can easily cause burns to the skin and eyes. Failure to take these precautions can result in operator injury.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

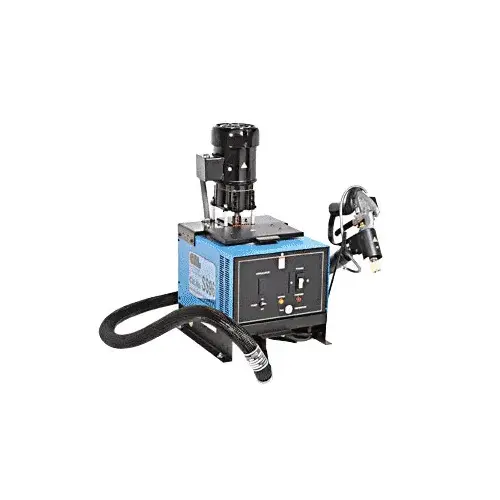

CRL SS96 Hot Melt Butyl Gunning System Other
Item #: SS96 by CR Laurence
1 1
reviews
In Stock
$19,830.99
/eachSAVE UP TO 1983.10
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- An Efficient Machine for Insulating Glass Fabrication
- Dispenses CRL30703 Hot Melt Butyl Cakes
- Includes 8' (2.4 m) Flexible Hose and Handgun
- Our Most Popular Model
Height
23
Length
14
Width
11 1/2
Shipping Dimensions
36" x 21" x 30"
Color
Other
Voltage
115 VAC, 60 Hz With Ground
Hose Length
96
Watts
1265
Hold Capacity
10 Pounds (Tank)
Shipping Crate (Inches)
36 x 21 x 30
Temperature Range (Degrees)
100-425°F (Tank)
Temperature Range
100-425°F (Tank)
Shipping Crate
36 in. X 21 in. X 30 in. (914 mm X 533 mm X 762 mm)
The CRL Hot Melt Butyl Gunning System is compact and versatile. Its unique pumping action eliminates entrapped air in the sealant. The pump has a 10 lbs. (4.53 kg) tank capacity with a temperature range from 100°F to 425°F. CRL Hot Melt Butyl can be added while gunning. An Eight-Foot Flexible Hose with variable 350° to 450°F temperature control is coupled with a lightweight, heated, hand gun which features a swivel and trigger lock action. The Cat. No. SS96 does not use compressed air, and operates quietly. The mechanical and electrical systems contain few moving parts, resulting in less down time and low maintenance operation.
ELECTRICAL
Voltage - 115 VAC, 60 Hz with ground
240V Models Available on Special Order
Wattage - 1265 Watts
Motor Rating - 1/6 hp, gearbox
38 rpm output
Warm-Up Time - 45 to 60 minutes
FUNCTIONAL
Melt Rate - 8 lbs. (3.6 kg)/hour
Pump Output Rate (Maximum) - 40 lbs. (18.1 kg)/hour
Tank Temperature Range - 100-425°F(37-217°C)
Tank Capacity – 10 Lb. (4.5 kg)
Gun/Hose Temperature Range - 350-450°F (177-232°C)
Shipping Weight - 120 lbs. (54 kg)
Product Warning:
Read the owner's manual and all manufacturer's warnings before using this machine. The material that is dispensed from this unit can be in excess of 400°F and can easily cause burns to the skin and eyes. Failure to take these precautions can result in operator injury.
.
