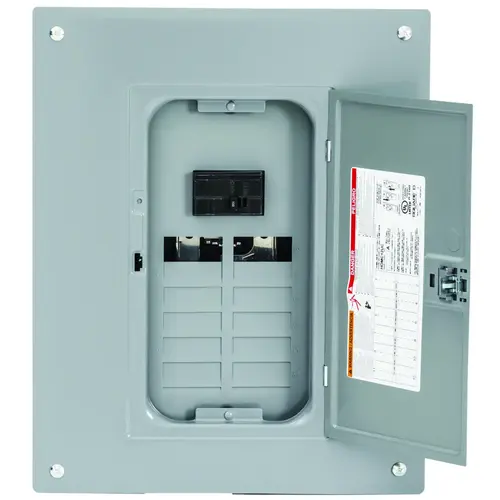

Load Center, 24 -Pole, 100 A, 12 -Space, Plug-On Neutral, NEMA 1 Enclosure

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Square D HOM1224M100PCClick To Copy Load Center, 24 -Pole, 100 A, 12 -Space, Plug-On Neutral, NEMA 1 Enclosure

Item #: HOM1224M100PC by SCHNEIDER ELECTRIC USA INC

UPC #: 785901863540

See reviewsSee reviews
See reviews summary
In Stock

$152.96

/each
SAVE UP TO 15.30

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 191 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Includes a factory-installed ground bar and a combination flush/surface cover

Height

6.00

AMPS

100 amps

Mounting Type

Flush Surface

Volts

120/240 V

Depth

3.8"

Width

16.20

UL Listed

Yes

Number of Spaces

12

Packaging Type

Boxed

Indoor or Outdoor

Indoor

Breakers Included

Yes

Circuit Protection Type

Single Pole

Defective Code

A

Each Weight

18.300 LB

Hazardous Material

No

Maximum Number of Circuits

24 circuits

Returnable

Yes

Sub Brand

HomeLine

Velocity

X

Product Type

Meter Breaker Load Center

Alternative UPC

785901863540

Length

20.60

ECCN

EAR99

Country Origin Code

US

Bus Bar Material

Aluminum

Breaker/Load Center Type

Plug-On Neutral

Enclosure Type

NEMA 1

Current Rating

100 A

Cable Size

6 to 2/0 AWG

Interrupt Rating

22 kA

Number of Poles

24

Nomenclature

HOM1224M100PC LOADCENTER 100A

Cover/Lid Type

Flush

Number of Phases

1

Wiring Configuration

3-wire

Voltage

120/240

Wire Size

#6 to 2/0 AWG (Copper, Aluminum)

Amperage

100

Phase

Single

Certification

UL Listed

Series

Homeline

Mount Type

Combination

Max Number of Circuits

24

Product Overview
LOADCENTER INDOOR 100A 12 SPCE
Specifications:

Includes: PK15GTAL Ground Bar Combination Flush/Surface Cover

Built with a plated, aluminum bus bar. Main breaker installed. UL listed.
