QO Circuit Breaker, Primary, 100 A, 2 -Pole, 120/240 V, Plug Mounting, Black

Roll over image to zoom in

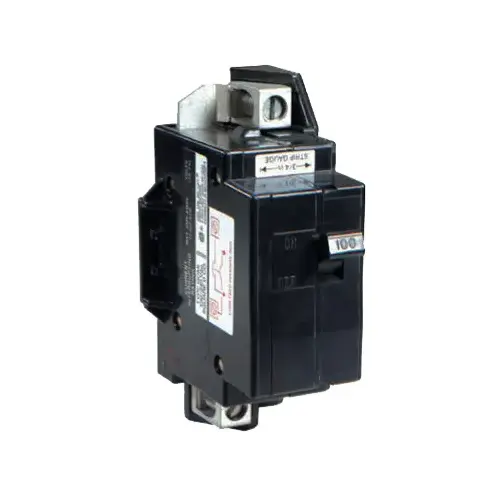

Square D QOM100VHCP QO Circuit Breaker, Primary, 100 A, 2 -Pole, 120/240 V, Plug Mounting, Black

Item #: QOM100VHCP by SCHNEIDER ELECTRIC USA INC

UPC #: 047569822599

See reviewsSee reviews
In Stock

$132.61

/each
SAVE UP TO 13.26

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • QOM1 frame size main circuit breaker that is field-installable
  • Shielded copper bus bar
  • Available in single and three phase
  • 120/240 VAC
  • Ground bar is included with all main lugs load centers with three mounting locations
  • QOM 100 Amp 22k AIR QOM1 frame size main circuit breaker for QO or Homeline load centers
  • Protect a breaker panel in a QO or Homeline 100 - 125 Amp main lug load center or CSED with this QOM1 frame size main breaker
  • Convertible mains let you meet changing job-site requirements
  • Limited lifetime warranty
  • Tangential main service knockouts
  • 22,000 AIR
  • Enclosure rotates for top or bottom feed to reduce service cable waste
  • ANSI certified and UL listed
  • Qwik-Open circuit breaker protection
  • Exclusive Visi-Trip red indicator
  • Quick make - quick break mechanism
  • Plug-on design, easy to install

Height

4.40

AMPS

100 amps

Mounting Type

Plug

Volts

120/240 V

Depth

4.3"

Width

4.10

UL Listed

No

Number of Poles

2

Packaging Type

Boxed

Indoor or Outdoor

Indoor

Circuit Protection Type

Plug In

CSA Listed

Yes

Defective Code

A

Each Weight

1.800 LB

Hazardous Material

No

Returnable

Yes

Sub Brand

QO

Velocity

X

Product Type

Circuit Breaker

Length

5.40

ECCN

EAR99

Country Origin Code

MX

Color

Black

Wire Size

4 to 2/0 AWG

Number of Spaces

2

Operating Temperature

104 deg F

Type

Primary

Operating Frequency

50/60 Hz

Current Rating

100 A

Actuator Type

Magnetic Thermal

Interrupt Rating

22 kA

Dimensions

5 in W x 3.47 in D x 5.09 in H

Nomenclature

QOM100VHCP MAIN BREAKER 100A

Number of Phases

1

Voltage

120/240

Frame Size

2-Space

Amperage

100

Width (in)

5

Depth (in)

3.47

Height (in)

5.09

Certification

ANSI/UL Listed

Mount Type

Bolt-On

Interruption Type

Standard Trip

Product Overview
CIRCUIT BREAKER MAIN QO 2P100A

The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D exclusive Qwik-Open protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.
