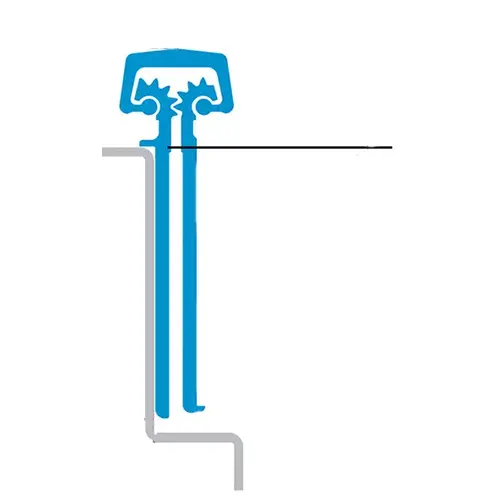

CONTINUOUS HINGE, CONCEALED HEAVY DUTY, 95 INCHES CLEAR ALUMINUM

Roll over image to zoom in

Select Hinges SL24 CL HD 95 CONTINUOUS HINGE, CONCEALED HEAVY DUTY, 95 INCHES CLEAR ALUMINUM

Item #: SL24 CL HD 95 by Select Hinges

See reviewsSee reviews
In Stock

$256.20

/each
SAVE UP TO 25.62

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

For Use With

1-3/4" Doors

Application

Geared Continuous Hinges are Build to Handle Abuse From High Traffic Applications

Function

Continuous Hinge

Maximum Door Width

48 Inch

Hinge Type

Continuous Full Mortise

Finish Description

Aluminum

Bearing Type

Thrust Bearings

Product Length

95 Inch

ADA Compliant

No

Finish Family

Aluminum

Hinge Size

95 Inch

Product Material

Aluminum 6063 T6

Standards

ANSI/BHMA A156.26-2006 Grade 1

Fastener Size

12-24 X 3/4" Self Drilling, Thread Forming 410SS Phillips Undercut Flathead Screws

Function Family

Hinge/Pivot

Product Type

Hinge/Pivot

Series

SL24 Series

Manufacturer Parent

Select Products Limited

Hinge Clearance

Door Closed: 11/32" Bevel Edge Clearance, 5/16" Square Edge Clearance; Door Open 90 Degree: 7/16" Clearance Required for Cap Rotation

Sub-Series

HP_Continuous_Hinges_select_17

Product Overview
Hinge failure is the most common cause of entrance failure. The Select Continuous Geared Hinge is a revolutionary development that puts an end to the costly and irritation problems associated with hinge failure. Extruded 6063 T6 Aluminum alloy w/ polyester thrust bearings. Load/Frequency Ratings For 1-3/4 doors. 48 max. door width in 16 gauge hollow metal (min.) or 1/8 aluminum (min.). Heavy Duty "“ Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame and door. SELECT SL24 geared continuous hinges are listed and tested by Underwriters Laboratories to meet the Positive and Negative pressure requirements of UL10B and UL10C and are in accordance with UBC 7.2 (1997). SELECT SL24 geared continuous hinges are for use on swinging single fire doors (max. door opening of 4'x10') or pairs of fire doors (max. door opening of 8'x10') including double egress installed in masonry or drywall. SELECT SL24 geared continuous hinges are rated for up to 1-1/2 hours for wood composite and wood core type fire doors. A special patented process can be added to increase the fire rating to 3 hours (NO FIRE PINS OR STUDS REQUIRED) for hollow metal or steel covered composite type doors.
