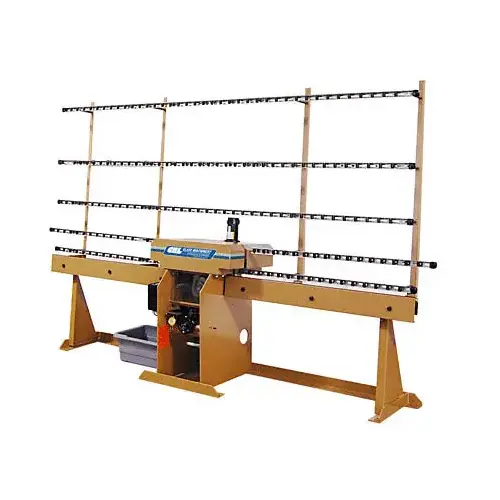

CRL ALUM-VE1P-VCP-1Click To Copy Single Spindle Automatic Glass Edging Machine
Item #: ALUM-VE1P-VCP-1 by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- The Easiest Glass Edger to Set Up and Run
- Produces Flat Edges with Seams, Pencil Edges (Round), and Miter Edges on Glass from 1/8" to 1/2" (3 to 12 mm) Thick
- Edges Glass Up to 66" (1.68 m) Per Minute
- Recirculating Coolant Eliminates Dust
- 110V AC Power
- Spindle Holds Diamond Grinding and Polishing Wheels
- Available for Purchase or Lease
Height
81" (2.06 m)
Wide
31" (787 mm)
Length
10' (3.05 m)
Product Overview
CRL Single Spindle Automatic Glass Edging Machine is a high quality tool that offers a simple and reliable method for edging and polishing glass. It can be used for a variety of thickness for glass and mirror. It works six times faster than a belt machine which results in reduced production time and labor cost. CRL Single Spindle Automatic Glass Edging Machine is easy to operate The operator merely pushes the glass into the roller/belt conveyor and it is smoothly pulled over the wheel. Glass from 1/8" to 1/4" (3 to 6 mm) thickness can be processed with just one wheel. Specifications: Length: 10' (3.05 m) Wide: 31" (787 mm) Height: 81" (2.06 m) The VE1P is the ideal choice for an affordable Glass Edging Machine. Ask us about our Leasing Program. If you would like to see a sample of glass edged by the VE1P, or need additional information, please contact CRL/Somaca Glass Machinery Division.Edger comes with Machine Stand; Machine Tank; Coolant Tank; Coolant Pump; One Gallon Diamond Tool Coolant; Back Rack; Five Back Rack Support Bars; One 1/8"-1/4" Diamond Wheel (Flat with Seams); 1 Polishing Wheel; and Instruction Manual. Additional Models available for export include: EU11 - CE version of VE1P for Europe operating on 1/50/240V AC AU11 - Export Version for countries not operating under CE requirements. Voltage is 1/50/240V AC. Important Notes WHEELS (INCLUDED): Diamond Wheel: One 7" (178 mm) for 1/8" to 1/4" (3 to 6 mm) Flat and Seam; Polish Wheel: One 7-1/4" x 3/4" (184 x 19 mm) Orange Wheel.UTILITIES: Electrical: Three Motors, Total 1-1/6 HP (0.87 kw) Voltage: Single Phase, 60 Cycle, 110V AC (220V AC available) Power: 13.8 AMP @ 110V AC 6.4 AMP @ 220V AC.MINIMUM GLASS SIZE: 4" x 10" (102 x 254 mm). Edge side must be at least 10" (254 mm) long. BE ADVISED that a forklift, lift gate, and/or loading dock are required to safely unload this machine. The delivered crate weighs appx. 1000 lbs (453 kg). DS 06/28/2016
From Manufacturer
Our CRL VE1P Glass Edger is designed and built to provide a simple, reliable method for edging and polishing a variety of thicknesses of glass and mirror for any size shop. This Edger will allow you to do quality edgework up to six times faster than a belt machine. Pencil edge, miter, and flat and seam edgework can all be performed on the VE1P.
Machine operation is very simple. The operator merely pushes the glass into the roller/belt conveyor and it is smoothly pulled over the wheel. You can process glass from 1/8" to 1/4" (3 to 6 mm) thick with just one wheel.
The VE1P is the ideal choice for an affordable Glass Edging Machine. Ask us about our Leasing Program. If you would like to see a sample of glass edged by the VE1P, or need additional information, please contact CRL/Somaca Glass Machinery Division.
Edger comes with Machine Stand; Machine Tank; Coolant Tank; Coolant Pump; One Gallon Diamond Tool Coolant; Back Rack; Five Back Rack Support Bars; One 1/8"-1/4" Diamond Wheel (Flat with Seams); 1 Polishing Wheel; and Instruction Manual.
Additional Models available for export include:
EU11 - CE version of VE1P for Europe operating on 1/50/240V AC AU11 - Export Version for countries not operating under CE requirements. Voltage is 1/50/240V AC.
WHEELS (INCLUDED): Diamond Wheel: One 7" (178 mm) for 1/8" to 1/4" (3 to 6 mm) Flat and Seam; Polish Wheel: One 7-1/4" x 3/4" (184 x 19 mm) Orange Wheel.UTILITIES: Electrical: Three Motors, Total 1-1/6 HP (0.87 kw) Voltage: Single Phase, 60 Cycle, 110V AC (220V AC available) Power: 13.8 AMP @ 110V AC 6.4 AMP @ 220V AC.MINIMUM GLASS SIZE: 4" x 10" (102 x 254 mm). Edge side must be at least 10" (254 mm) long. BE ADVISED that a forklift, lift gate, and/or loading dock are required to safely unload this machine. The delivered crate weighs appx. 1000 lbs (453 kg).
