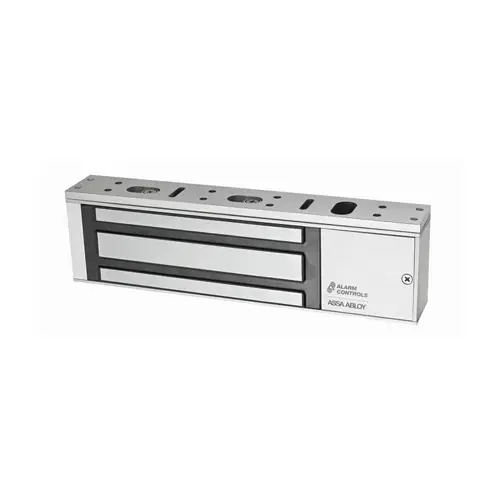

Alarm Controls 1200SClick To Copy Single Door Magnetic Lock Satin Aluminum Clear
Item #: 1200S by Alarm Controls
UPC #: 604840236423
See reviewsSee reviews
In Stock
$244.36
/eachSAVE UP TO 24.44
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 167 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1200 Pound Holding Force
- Operates on 12 or 24 VDC
- Low Current Draw: 400 mA at 12 VDC, 200 mA at 24 VDC
- UL and Canadian UL Listed, R16759
- E-Z Mount System, No Special Tools Required
Finish
Satin Aluminum Clear
Series
1200 Series
Color
Satin Aluminum Clear Anodized
Operating Voltage
12VDC/24VDC
Package Qty
1
Color Code
628/US28
Holding Force
1200lb
Switch Type
None
Finish Description
Satin Aluminum
Product Type
Electromagnetic Lock
Product Height
2-7/8 Inch
Product Length
10-1/2 Inch
Armature Size
7-1/4" L x 2-3/8" H x 5/8" W
ADA Compliant
No
Finish Family
Aluminum
Product Depth
1-1/2 Inch
Standards
UL 294 Listed; UL 10C Fire Rated; CAN/ULC-S104 Fire Door Conformant; ULC-S527 Listed; UL 864 Listed
For Door Type
Single
Indoor or Outdoor Use
Indoor
Features
Standard Model; Built-In Arc Suppression; Instant Release, No Hysteresis; Self-Drilling Tec Screws; Non-Aluminum Parts are Plated to Resist Corrosion; E-Z Mount Header Bracket And Template Provided For Easy Installation
Voltage
24 VDC
Mounting Type
Bracket Mounted
Application
Can be Used with Any Access Control System
Warranty
LIFETIME LIMITED WARRANTY
Operating Temperature
14 to 131°F
Function
Magnetic Lock
Manufacturer Parent
Assa Abloy
Resistance Properties
Corrosion Resistant
Sub-Series
1200S
Package Height
4"
Package Length
12"
Package Width
4"
Item Weight
12 lbs
Product Overview
Model 1200S1200 lbs Single Magnetic Lock
Specifications
Product Features
Specifications
- 1200 lbs holding force
- Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
- Armature size: 7-3/8" L x 2-3/8" H x 9/16" W
- Operates on 12 or 24 VDC, selectable
- Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
- Operating temperature: +14 to +131F [-10 to +55C]
- UL 10C, UL 294 and ULC-S104 (Canada) listed
Product Features
- Instant release, no hysteresis
- Can be used with any access control system
- Self drilling TEC screws
- Built-in arc suppression
- E-Z mount system, no special tools required
- Non-aluminum parts are plated to resist corrosion
- Limited lifetime warranty
