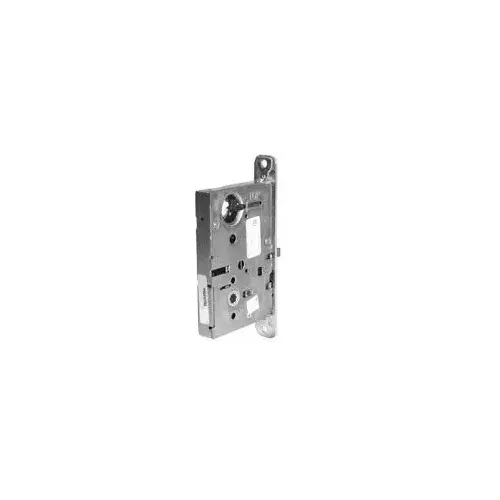

ML2051 Mortise Office Lever Lockset Body Only, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Corbin Russwin ML2051 LL 626 ML2051 Mortise Office Lever Lockset Body Only, Satin Chrome

Item #: ML2051 LL 626 by Corbin Russwin

See reviewsSee reviews
In Stock

$438.56

/each
SAVE UP TO 43.86

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lock case;
  • Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available
  • Backset 2-3/4" (70mm).
  • Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance
  • Front Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
  • Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
  • Latchbolt 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
  • Keys Two nickel silver standard.
  • Federal Meets FF-H-106C.
  • Environmental Product Declaration (EPD) certified

Color Code

626/US26D

Fire Rated

3 Hours {A}

Backset

2-3/4 Inch

Strike

ANSI Straight Lip Strike

Series

ML2000 Series

Function

51-Entrance/Office

Finish

US26D Satin Chrome (626)

Origin

USA

BAA Qualified

Yes

Thickness

1-3/4"

Strike Number

236L72018

ANSI Function

F04

Hand

Field Reversible

Grade

ANSI/BHMA Grade 1

Special Marks

Fire rated 3 Hours {A}

Strike Width

1-1/4"

Lock Face Size

8" x 1-1/4"

Application

Offices, Schools, Hospitals, Hotels

Package Qty

1

Screws

Combination

Bolt Protection

3/4" Latchbolt

Strike Type

Straight Lip

Base Material

Brass or Bronze

Strike Height

4-7/8"

Finish Description

Satin Chrome

Lever Style

Lockbody

Product Type

Mortise Lock

Handing

Quick Reversible Handing

Cylinder

LC

Door Range

1-3/4"

Warranty

10 year limited

Aluminium Bottle Contents

Swinging

ProductType

Manual

Lip to Center

1-1/8 Inch

Strike Size

4-7/8" x 1-1/4"

Manufacturer Parent

Assa Abloy

Latch Throw

3/4 Inch

Spacing

3-5/8" (Knob/Lever to Cylinder); 2-7/16" (Knob/Lever to Thumbturn)

Case Dimensions

5-7/8" x 4" x 15/16"

Sub-Series

CL_Mortise_Locks_corbin_russwin_448

ADA Compliant

YES

Front Material

Steel

Front Size

8" x 1-1/4" x 3/32"

Cylinder Type

Conventional

Handle Type

Lever

Latchbolt Type

2-Piece Mechanical With Anti-Friction Insert

Hub Material

Steel

Latchbolt Size

5/8" x 1"

Function Family

Entry/Entrance/Office

Standards

ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1, A117.1 Accessibility Code; UL Listed

Door Thickness

1-3/4 inch

Features

Provides Life Safety and Security in a Single Door Prep, Saving the Additional Cost of a Deadlock; Latchbolt by Key When Outside Grip Locked by Toggle Action Stop; Latchbolt by Grip Either Side, Unless Outside Grip is Locked by Toggle-Action Stop

Included Components

(2) Keys

Hub Size

5/16 Inch

Finish Family

Satin Chrome
