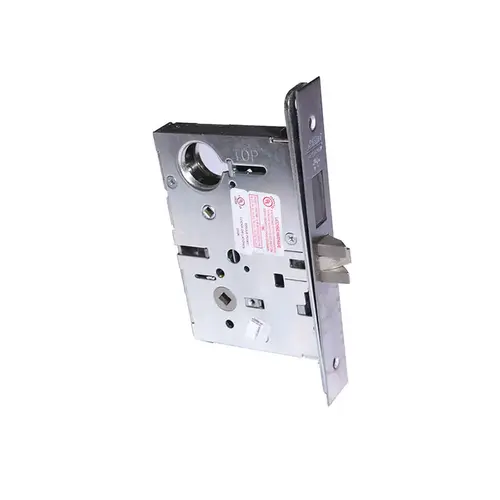

Corbin Russwin ML2024 KK 626 Single Cylinder Entry with Deadbolt Mortise Knob by Knob Lock Body, Strike, Front Plate, and Screws Satin Chrome Finish

Item #: ML2024 KK 626 by Corbin Russwin

See reviewsSee reviews
In Stock

$474.42

/each
SAVE UP TO 47.44

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lock case;
  • Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available
  • Backset 2-3/4" (70mm).
  • Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance
  • Front Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
  • Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
  • Latchbolt 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
  • Keys Two nickel silver standard.
  • Federal Meets FF-H-106C.
  • Environmental Product Declaration (EPD) certified

Color

Satin Chrome

Color Code

626/US26D

Fire Rated

3 Hours {A}

Origin

USA

BAA Qualified

Yes

Thickness

1-3/4"

Strike Number

236L72018

Function

24-Entrance or Storeroom

ANSI Function

F21 - Entry Office

Hand

Field Reversible

Grade

Grade 1

Special Marks

Fire rated 3 Hours {A}

Strike Width

1-1/4"

Lock Face Size

8" x 1-1/4"

Application

Lockbody Only

Package Qty

1

Screws

Combination

Bolt Protection

3/4" Latchbolt, 1" Deadbolt

Strike Type

ASA

Base Material

Brass or Bronze

Strike Height

4-7/8"
