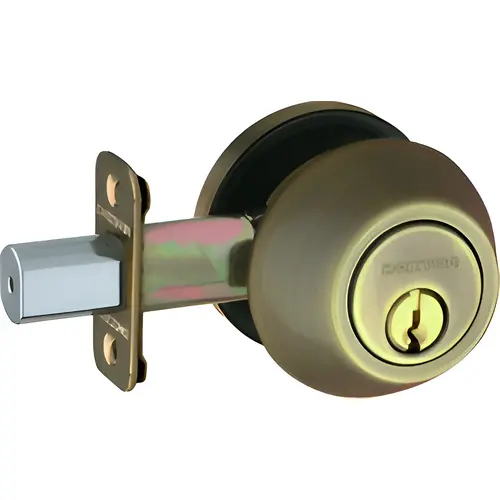

Schlage Residential JD60 609 JD60 Deadbolt, Satin Brass Blackened
Item #: JD60 609 by Schlage Residential
UPC #: 043156741724
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Single Cylinder Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
- Applications: Residential single and multi family doors
- Backset: Universal deadolts fit 2-3/8" or 2-3/4" backset
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Certifications: Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade CCC in Security, Durability and Finish
- Door thickness range: Door thickness range: 1-3/8" to 1-3/4" standard
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Keying: 5-pin, C keyway with 2 keys
- UL Listed: Available in boxpack for JD60, JD80 and JD81
Finish
Satin Brass Blackened
Function
60-Single Cylinder Deadbolt
Series
JD Series
Handing
Reversible
Strike
Dual Radius Deadbolt and Full Lip
Backset
Dual Option-Round, Drive-In
Color
Satin Brass Blackened Satin Relieved Clear Coated
Color Code
609/US5
Grade
ANSI/BHMA Grade 3
Keyway
Schlage C
Cylinder Type
Conventional Cylinder
Finish Description
Antique Brass
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Projection
1.0000
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
3.15 Inches
Product Length
3.74 Inches
Included Components
Deadbolt; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
3.7400
Box Width
3.7400
Box Height
3.1500
Style
Round
Application
Residential Single- and Multi-Family Doors
Warranty
Lifetime Mechanical and 5 yr Finish
ADA Compliant
No
Finish Family
Antique Brass
Standards
ANSI/BHMA A156.36-2010
Function Family
Single Cylinder Deadbolt
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.15x3.74x3.74
Sub-Series
RL_Deadbolts_Schlage_Residential_16
Features
Deadbolt Thrown or Retracted by Key From Outside or by Inside Turn Unit; Bolt Automatically Deadlocks When Fully Thrown; Dual Option Latches
Cylinder Included
Yes
Strike Size
2-1/4" x 1"
Alternate Part Number-1
133107
Latch Bolt Type
Deadbolt
Latch Bolt Faceplate Size
2-1/4" x 1"
Door Bore Size
2-1/8"
Lock Category
Deadbolt
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Drive-In, Round Corner, Square Corner
Latch Bolt Throw
1"
Door Thickness Max
1-3/4"
Knob/Lever Style
Inside Thumbturn
Product Overview
J SeriesDeadbolts
With premium metal construction and plated keyways, Schlage mechanical and electronic deadbolts are made with durability in mind. Combine our wide range of unique finish and style options with our easy one-tool installation and you can give your door a stylish makeover in minutes.
Available Functions: JD60 - Single Cylinder Deadbolt Lock:- Deadbolt thrown or retracted by key from outside or by inside turn unit
- Bolt automatically deadlocks when fully thrown
- Deadbolt thrown or retracted from interior side only
- Deadbolt thrown or retracted from interior side only
- *Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- 16-068 - Dual Option (Round, Drive-in) - Standard
- 10-267 - One Radius Deadbolt Full Lip Strike (10-102)
& One Radius Deadbolt Strike (10-103) - Standard - 10-099 - Square Strike Plate & Strike Frame Reinforcer
- ANSI/BHMA A156.36-2010 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate, drive-in latch, 1" housing diameter, 1" throw
- 1" x 2 1/4" round corner and radius corner, full lip
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Deadbolts tab
