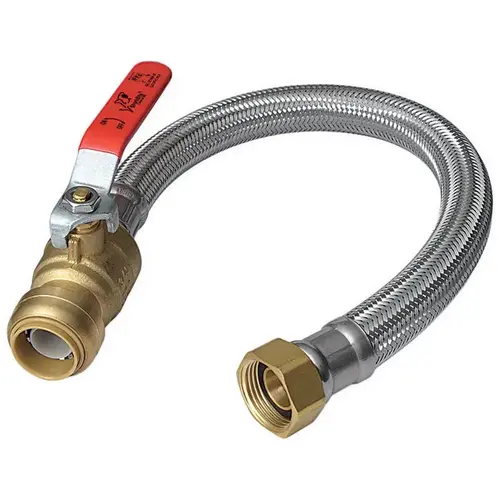

SharkBite U3088FLEX18BVLF U3088FLEX18 Flexible Water Heater Connector, 3/4 in, FIP, Braided Stainless Steel, 18 in L
Item #: U3088FLEX18BVLF by Reliance Worldwide
UPC #: 697285082359
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Integrated ball valve for easy shut-off
- Approved for electric and gas water heaters with flue vent
- No special tools, crimping, glue or soldering is needed
- Can be installed in wet lines
- Can be rotated for easier and faster installation
- Ideal for working in tight spaces
Warranty
Limited
Certifications
LEAD-FREE
Fuel Type
Potable Water
Manufacturer Warranty
Manufacturer's Warranty
Finish Family
Silver Metallic
Product Depth (in.)
1.43
Product Height (in.)
2.38
Product Width (in.)
18.125
Use
Residential
Pack Size
1
Returnable
Yes
Defective Code
A
Outlet Fitting Type
FIP
Application
Water Heater
Packaging Type
Bagged
Length
18
Inlet Diameter
3/4"
Average Lead Content
Lead-Free
Product Type
Supply Line
Material
Braided Stainless Steel
Working Pressure
200 psi
Inlet Fitting Type
Push Fit
Each Weight
1.040 LB
Outlet Diameter
3/4"
Velocity
B
Hazardous Material
No
UNSPSC
40101825
Height
1.25
Width
1.25
Brand
SharkBite
Country Origin Code
CN
Suitable For
PEX Copper CPVC and PE-RT Pipe
Nominal Size
3/4"
Pressure rating
200 psi
Temperature Rating
200 deg F
Nomenclature
U3088FLEX18BVLF 3/4 WH CONNECT
Connection Type
FIP
Alternative UPC
697285604612
Pipe Size
3/4 inch x 3/4 inch FIP
Hose Length
12 In.
Finish
Stainless Steel
Color
Stainless Steel
Package Quantity
1
UL Listed
No
Maximum Working Pressure
200 psi
ADA Compliant
No
Hose Material
Brass
Indoor/Outdoor
Indoor/Outdoor
Inlet Size
0.75 in.
Kink Resistant
False
Outlet Size
0.75 in.
Maximum Working Temperature
140 °F
Hose Inside Diameter
0.75 in.
Connector Material
Stainless Steel
Hose Outside Diameter
0.75 in.
MADE IN THE USA
No
Hose Fitting Size
0.75 in. x 0.75 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
No
Inlet Fitting End Type
Push-To-Connect
Assembled Product Weight
1.14 lb.
Outlet Fitting End Type
Female NPT Thread
Product Overview
CONN PUSHFIT BRS 3/4X18IN
Specifications:
Specifications:
Warranty: Limited
Includes: Ball Valve
Suitable for: PEX Copper CPVC and PE-RT Pipe
Flexible water heater connectors allow you to work in tight spaces and easily connect water heaters with existing pipes that don't line up. Integrated ball valve allows the water heater supply to be shut-off. Approved for use on electric or gas water heaters with a flue vent. Innovative design reduces the need for extra joints or fittings allowing for faster install time.
