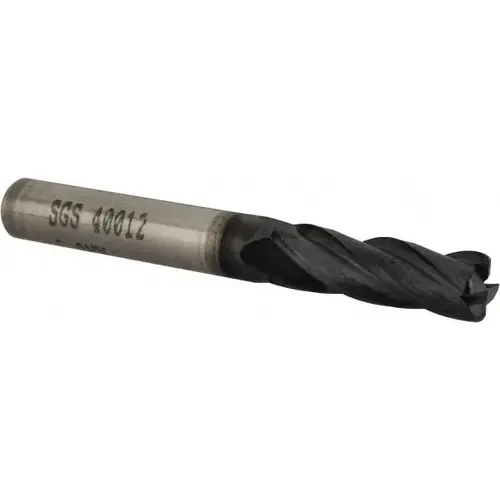

SGS 40012 Corner Radius End Mill: 6 mm Dia, 19 mm LOC, 1 mm Radius, 4 Flutes, Solid Carbide AlTiN
Item #: 40012 by SGS
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Proprietary Coating Designation
Ti-NAMITE-A
Corner Radius (mm)
1.00
Corner Radius Tolerance
-0.0500 to 0.0000 mm
Shank Diameter Tolerance
h6
Mill Diameter (mm)
6.00
Mill Diameter Tolerance
-0.0508 to 0.0000 mm
Secondary Workpiece Material Code
H
Length of Cut (mm)
19.00
Variable Index
Yes
Single Or Double End
Single
Secondary Workpiece Material
Hard Material
Mill Diameter (Decimal Inch)
0.2362
Material Removal Type
Roughing & Finishing
Helix Style
Medium
Flute Direction
Right Hand
Extended Reach
No
End Mill Material
Solid Carbide
Centercutting
No
Vendor Drop Ship
N
UNSPSC Code
27112803
Shank Diameter (mm)
6.00
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Overall Length (Inch)
1-31/32
Material Grade
Micrograin
Length Of Cut (Decimal Inch - 4 Decimals)
1.0000
Corner Radius (Decimal Inch)
0.0394
Coolant Through
No
Coating/Finish
AlTiN
Variable Helix
No
Series
01C
Cutting Direction
Right Hand
Length Type
Long
Chipbreaker
No
Pitch
Normal
Number of Flutes
4
Overall Length (mm)
50.00
End Type
Corner Radius
Shank Type
Straight-Cylindrical
Material Application
Steel
Flute Type
Helical
For Use With
End Mill Holders
Product Overview
Corner Radius End Mill: 6 mm Dia, 19 mm LOC, 1 mm Radius, 4 Flutes, Solid Carbide 1-31/32" OAL, 6 mm Shank Dia, 30 degree Helix, AlTiN Coated, Single End, Centercutting, Series 1CR
