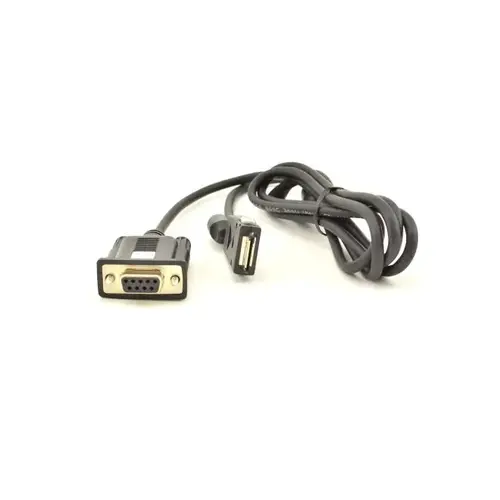

Schlage Electronics HH-SERIALClick To Copy Cable used to Connect HDD to CIP

Schlage Utility Software (SUS) is designed specifically for use on the Handheld Device (HHD) as the link between your access control management software and Schlage AD/CO electronic offline and networked locks and accessories.

This solution consolidates and simplifies programming and managing your access control system. The SUS and HHD are used to initialize, configure and test product operation, and also provides an easy way to manage people, audits, locks and other network panel interface devices for simple access control. The intuitive screen layout for the SUS provides easy navigation during use.

For offline products, the SUS is utilized to transfer access control data, such as authorized user lists, via the HHD to the locks. The SUS is also utilized to download audit trail information from offline devices to the HHD and then transfer that data to the access control management software.

In addition, the SUS can configure other networked electronic devices (including PIM and PIB) and update firmware revision updates to the devices, as desired.

The HHD connects with Schlage AD Series electronic locks and accessories via a USB interface and utilizes active Synch or Win mobile device manager to communicate with your PC via the USB port. The HHD is also able to connect to the SPED, KC2, CM, CL, CT5000, CT1000, CL Controller and WA Series PIMs via a serial cable connection.

• Handheld Device with Schlage Utility Software installed
• Touch screen operation
• Initialize lock and accessories with SUS
• Configure and test devices
• New device template simplifies configuration
