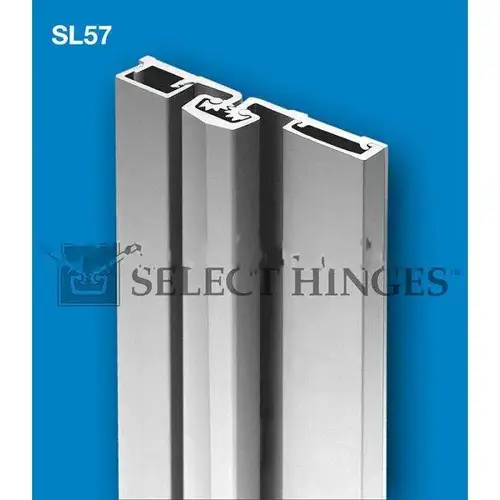

Select Hinges SL57 108 CL HD SL57 Full Surface Continuous Geared Hinge Clear Anodized
Item #: SL57 108 CL HD by Select Hinges
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Fastener Size
12-24 X 3/4" Self Drilling, Thread Forming 410SS Phillips Undercut Flathead Screws , 1/4-20 Through Bolts, 1/4-20 Shoulder Screws
Finish
Clear Anodized
Hinge Size
108 Inch
Finish Description
Aluminum
For Use With
1-3/8" to 1-3/4" Doors
Function
Continuous Hinge
Maximum Door Width
48 Inch
ADA Compliant
No
Application
Geared Continuous Hinges are Build to Handle Abuse From High Traffic Applications
Standards
ANSI/BHMA A156.26-2006 Grade 1
Hinge Type
Continuous Full Surface
Product Type
Hinge/Pivot
Product Material
Aluminum 6063 T6
Product Length
108 Inch
Series
SL57 Series
Product Overview
SL57Geared Full Surface Continuous Hinges
Fits narrow (7/8") frame face. Tamper resistant, removable door leaf cover. 1/16" door inset. Standard barrel nuts accommodate 1-3/8" to 1-3/4" doors. Long barrel nuts available for 2" to 2-1/4" doors.
All SL57 geared continuous hinges are BHMA Grade 1 certified.
Features & Benefits
- LOAD/FREQUENCY RATINGS: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
- Heavy Duty – Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame.
