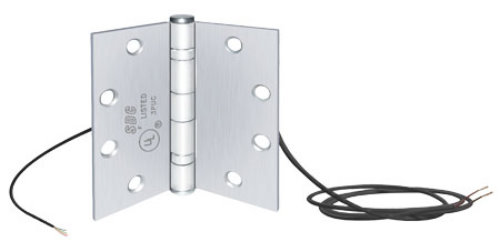

Security Door Controls PTH-4Q26D Power Transfer Hinge, 4 Wire 1 Amp (26AWG), 4.5" x 4.5", 5ft Lead, Satin Chrome US26D/626

Item #: PTH-4Q26D by Security Door Controls

See reviews See reviews
In Stock

$162.62

/each
SAVE UP TO 16.26

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

139199

Voltage

12/24V DC

Handing

Non-Handed

Hinge Type

Butt Hinge

Door Type

Metal Door, Wood Door

Hinge Size

4.5"

Mounting Holes

8 Holes

Hinge Style

5 Knuckle, Full Mortise

Hinge Rating

Standard Weight

SDC PTH Electric Power Transfer Hinge

Electric Power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

Applications: Installed in the center hinge position of the door, PTH Power Transfer Hinges provide the concealed wires required between the door and the frame, for the purpose of powering and monitoring electric door hardware:

  • Electric Lock Power and Control.
  • Door and Lock Status Signaling.
  • Request-to-Exit Signaling.

    • MODELS

  • PTH-4Q
    • Four (4) Conductor Power Transfer Hinge
    • 1 Amp @ 12/24V per pair
    • 4.5" x 4.5" standard weight, 626 Dull Chrome
  • PTH-4Q-DPS
    • Four (4) Conductor Power Transfer Hinge with Door Status Contact
    • 1 Amp @ 12/24V per pair
    • Door Status Contact: 250 mA @ 30VDC
    • 4.5" x 4.5" standard weight, 626 Dull Chrome
  • PTH-10Q
    • Ten (10) Conductor Power Transfer Hinge
    • 1 Amp @ 12/24V per pair
    • 4.5" x 4.5" standard weight, 626 Dull Chrome
  • PTH-10Q-DPS
    • Ten (10) Conductor Power Transfer Hinge with Door Status Contact
    • 1 Amp @ 12/24V per pair
    • Door Status Contact: 250 mA @ 30VDC
    • 4.5" x 4.5" standard weight, 626 Dull Chrome

  • PTH-2+4Q
    • 16 Amp Inrush, 6 conductor power transfer hinge
    • 1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V
    • 4.5" x 4.5" standard weight, 626 Dull Chrome
  • PTH-2+4QDPS
    • 16 Amp Inrush, 6 conductor power transfer hinge, with door status contact
    • 1-pair 16 Amp inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V
    • Concealed Door Position Contact, 250 mA @ 30VDC
    • 4.5" x 4.5" standard weight, 626 Dull Chrome

    FINISHES

  • – Dull Chrome fnish is standard as specifed by suffx Q.
  • – To specify special fnish, designate fnish suffx below in lieu of Q.

  • C 605 Bright brass
  • H 613 Oil rubbed bronze
  • P 625 Bright Chrome
