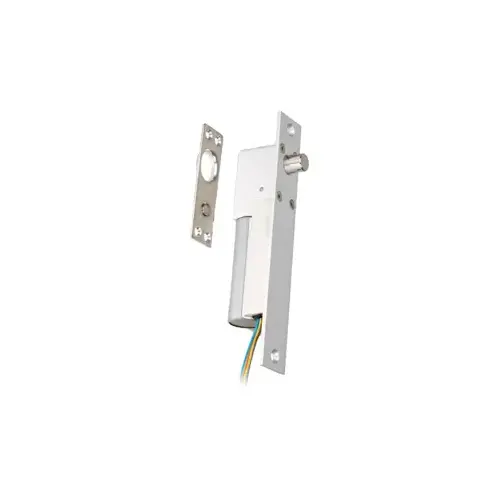

Concealed Electric Deadbolt 12/24VDC, Fail-Safe

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco-Larm SD-997B-GBQClick To Copy Concealed Electric Deadbolt 12/24VDC, Fail-Safe

Item #: SD-997B-GBQ by SECO-LARM U.S.A., Inc

See reviewsSee reviews
In Stock

$197.92

/each
SAVE UP TO 19.79

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

172415

Product Overview

Seco-Larm Electric Deadbolt - Fail-Safe

SECO-LARM Electric Deadbolts add concealed deadbolt security with the added convenience of electrical operation. They are suitable for most wood or hollow metal doors.

*Not recommended for use with wooden door frames.

FEATURES:

  • Adds concealed deadbolt security to most wood or hollow metal doors,* with the added convenience of electrical operation
  • Fail-safe operation (unlocks if power is lost)
  • Status sensor (Door open/close monitor): SPDT, 500mA@12VDC(NO/NC/COM)
  • Adjustable door lock delay timer (0, 2.5, 5, or 9 sec)
  • Control wire allows release without cutting unit's power
  • Magnetic switch determines door position for positive locking
  • Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out
  • Use with an optional digital keypad for high security without a key
  • Easily connects to SECO-LARM's Electronic Keypads
  • Suitable for office-type applications
  • Shallow design for use with most metal door jambs
  • No limiting installation orientation
  • Powered by a solenoid
  • Stainless steel for strength and long life. Operatiing lifetime: 1,000,000 operations
  • Plastic material Tefulon Polymonochlorotrifluoethylene
  • Power 12/24 VDC (auto sensing), 900mA@12VDC / 440mA@24VDC on activation, 340mA@12VDC / 180mA@24VDC standby
  • Over-current protection 1.5A
  • Stainless steel bolt, 5/8" diameter, 5/8" throw
  • Lock body (faceplate) dimensions – 7-7/8" x 1-5/16" (200x32 mm)
  • Lock body (cavity) dimensions – 5-3/4"x 1-1/8" x 1-1/2" (145x28x38 mm)
  • Strike plate dimensions – 3-9/16" x 1" x 1-1/8" (90x25x33 mm)
  • Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)
