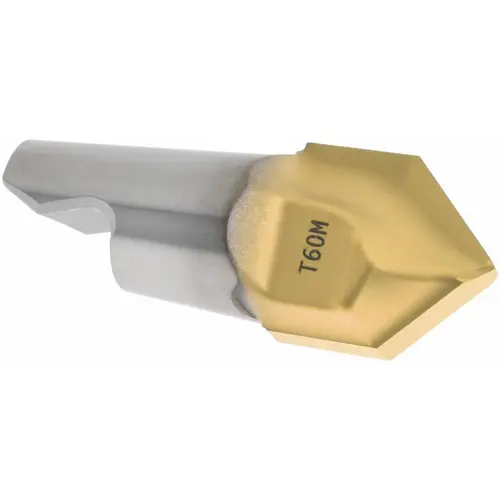

Seco 74004538Click To Copy Center Drill Replaceable Milling Tip: MM160.630C90M06 T60M T60M, Carbide TiAlN
Item #: 74004538 by Seco
See reviewsSee reviews
In Stock
$245.48
/eachSAVE UP TO 24.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 190 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Number of Flutes
2
Standards
ANSI
Tool Material
Carbide
Chipbreaker
M06
Series
MM16
Coating Process
PVD
Coating/Finish
TiAlN
Coolant Through
No
Corner Radius (Decimal Inch)
0.3390
Length Of Cut (Decimal Inch - 4 Decimals)
0.2960
Manufacturers Catalog Number
74004538
Material Grade
C5
Overall Length (Decimal Inch)
0.756
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23291601
Vendor Drop Ship
N
Cutting Width (Decimal Inch)
0.63
Lead Angle
45
Maximum Depth of Cut (Decimal Inch)
0.2960
Insert Hand
Right Hand
Cutting Diameter (Decimal Inch)
0.6300
Chamfer Angle
45
Included Angle Degree
90
Milling Tip Style
MM16
Maximum Depth of Cut (mm)
7.5
Milling Tip Type
Chamfer
Manufacturer Grade
T60M
Functional Length (Decimal Inch)
0.7560
Functional Length (mm)
19.20
Milling Tip Full Description
MM16-0.630-C90-M06
Extension From Holder (Inch)
0.7560
Product Overview
Center Drill Replaceable Milling Tip: MM160.630C90M06 T60M T60M, Carbide 2 Flutes, 0.315" Max Depth of Cut, Series Minimaster
