Turning Insert: RCMT0602M0-F1 TP2501, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2960387-XCP10Click To Copy Turning Insert: RCMT0602M0-F1 TP2501, Solid Carbide - pack of 10

Item #: 2960387-XCP10 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$132.43

/package
SAVE UP TO 13.24

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 31 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

4

Standards

ANSI

Included Angle

360degree

Insert Material

Carbide

Series

RCMT-F1

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.1181

Manufacturers Catalog Number

02960387

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2362in

Width (mm - 2 Decimals)

6.00

Coating Classification

Duratomic

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.2362

Insert Thickness (Decimal Inch)

0.0937

Insert Thickness (Inch)

3/32

Lead Angle

360degree

Maximum Depth of Cut (Decimal Inch)

0.1181

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2362

Insert Shape

Round

Clearance Code

C

Full Radius

Yes

Insert Shape Code

R

Chip Breaker

F1

Secondary Workpiece Material Code

M

Insert Style

RCMT

Insert Size Code

0602M0

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1142

Relief Angle

7

Multi-Use Application

Facing

Hole Diameter (Mm) ( - 0 Decimals)

2.90

Manufacturer Grade

TP2501

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.0000 - 0.3000

Inscribed Circle (mm)

6.00

Proprietary Coating Designation

Duratomic

Iso Code

RCMT0602M0-F1

Product Overview

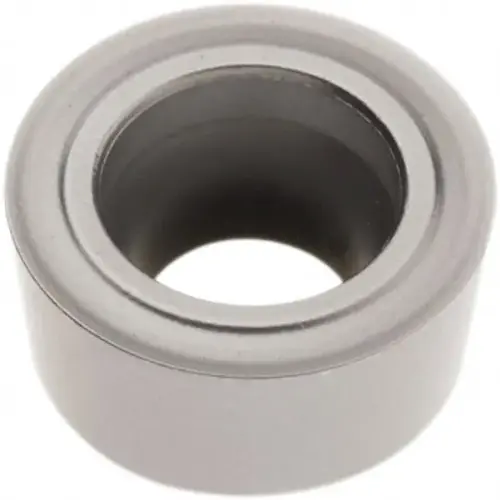

Turning Insert: RCMT0602M0-F1 TP2501, Solid Carbide Al2O3 Coated, Neutral, 0.11" Long, 6 mm Inscribed Circle, Series RCMT
