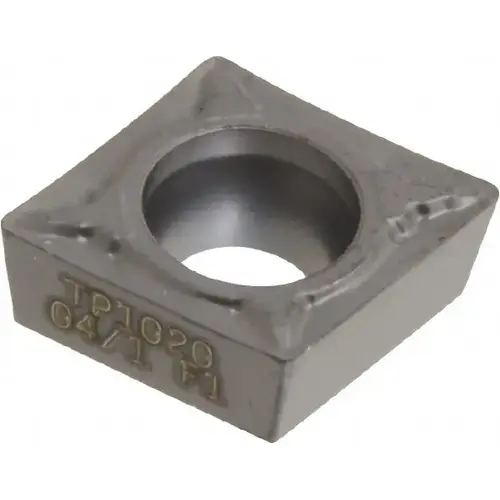

Seco 2754811Click To Copy Turning Insert: CCMT32.51F1 TP1020, Cermet Bright/Uncoated

Item #: 2754811 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$25.44

/each
SAVE UP TO 2.54

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 175 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80degree

Insert Material

Cermet

Series

CCMT-F1

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

02754811

Material Grade

P15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

Uncoated

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3819

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.3661

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

Diamond 80

Clearance Code

C

Full Radius

No

Insert Shape Code

C

Chip Breaker

F1

Insert Style

CCMT

Insert Size Code

32.51

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1772

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

0.18

Manufacturer Grade

TP1020

Length Range (Decimal Inch)

0.3000 - 0.4000

Proprietary Coating Designation

Uncoated

Iso Code

CCMT09T304-F1

Product Overview
Turning Insert: CCMT32.51F1 TP1020, Cermet Uncoated, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series CCMT
