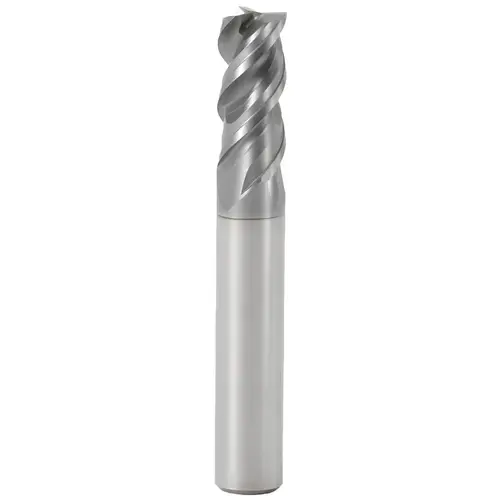

Seco 2679241Click To Copy Corner Chamfer End Mill: 2 mm Dia, 5 mm LOC, 3 Flutes, 0.001" Chamfer Width, Solid Carbide SIRON-A
Item #: 2679241 by Seco
See reviewsSee reviews
In Stock
$95.04
/eachSAVE UP TO 9.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 432 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Helical
Shank Type
Straight-Cylindrical
Overall Length (mm)
5.00
Helix Angle
48
Number of Flutes
3
Pitch
Normal
Chipbreaker
No
Length Type
Short
Cutting Direction
Right Hand
Series
JS553
Variable Helix
No
Coating/Finish
SIRON-A
Coolant Through
No
Length Of Cut (Decimal Inch - 4 Decimals)
0.1969
Manufacturers Catalog Number
553020Z3.0-SIRON-A
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (mm)
6.00
Vendor Drop Ship
N
Centercutting
Yes
Coating Classification
PVD
End Mill Material
Solid Carbide
Extended Reach
Yes
Flute Direction
Right Hand
Helix Style
High
Material Removal Type
Roughing & Finishing
Mill Diameter (Decimal Inch)
0.0787
Neck Diameter (Decimal Inch)
0.0790
Single Or Double End
Single
Variable Index
No
Length of Cut (mm)
5.00
Reach Length (mm)
6.00
Mill Diameter Tolerance
e7
Chamfer Angle
45
Mill Diameter (mm)
2.00
Neck Diameter (mm)
2.00
TIR Maximum (mm)
0.01
Chamfer Width (mm)
0.03
Chamfer Width (Decimal Inch)
0.0010
Shank Diameter Tolerance
h5
Chamfer Length (mm)
0.03
Product Overview
Corner Chamfer End Mill: 2 mm Dia, 5 mm LOC, 3 Flutes, 0.001" Chamfer Width, Solid Carbide 50 mm OAL, 6 mm Shank Dia, 48 degree Helix, AlCrN Coated, Centercutting
