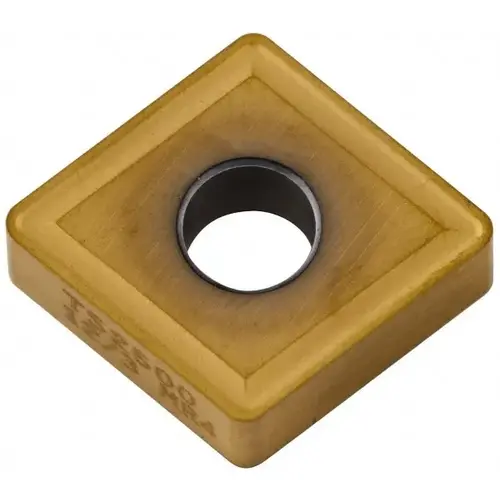

Turning Insert: CNMG 543-MR4 TS2500, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 2615960Click To Copy Turning Insert: CNMG 543-MR4 TS2500, Solid Carbide TiAlN

Item #: 2615960 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$50.95

/each
SAVE UP TO 5.10

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 290 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-MR4

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0472

Manufacturers Catalog Number

02615960

Material Grade

S10

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6250in

Width (Inch)

5/8in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6339

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.5866

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.6250

Corner Radius (Inch)

3/64

Insert Shape

Diamond 80

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

MR4

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

543

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2500

Relief Angle

0

Inscribed Circle (Inch)

5/8

Multi-Use Application

Boring

Manufacturer Grade

TS2500

Length Range (Decimal Inch)

0.6000 - 0.6500

Inscribed Circle (mm)

15.88

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG160612-MR4

Product Overview
Turning Insert: CNMG 543-MR4 TS2500, Solid Carbide TiAlN & TiN Coated, 5/8" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series CNMG
