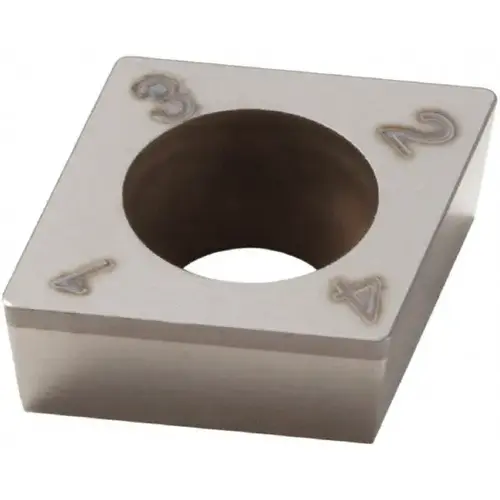

Turning Insert: CCGW 32.52S-00420-LF, Polycrystalline Cubic Boron Nitride Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 02464703 Turning Insert: CCGW 32.52S-00420-LF, Polycrystalline Cubic Boron Nitride Bright/Uncoated

Item #: 02464703 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$332.48

/each
SAVE UP TO 33.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80degree

Insert Material

Polycrystalline Cubic Boron Nitride (PCBN)

Series

CCGW-Flat Top

Coating Process

PCBN

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

02464703

Material Grade

K10

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

Uncoated

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3819

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.1146

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Super-alloys & Titanium

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

C

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

Flat Top

Secondary Workpiece Material Code

S

Insert Style

CCGW

Insert Size Code

32.52

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1772

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Boring

Manufacturer Grade

CBN200

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.3000 - 0.4000

Proprietary Coating Designation

Uncoated

Iso Code

CCGW09T308S-01020-LF

Product Overview
Turning Insert: CCGW 32.52S-00420-LF, Polycrystalline Cubic Boron Nitride Uncoated, 3/8" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series Secomax
