These CRL SDC Power Supplies are designed to make it easy and cost effective to power electrical locking systems. They provide regulated, filtered, low voltage DC power to interface with locking devices, station controls, and consoles. Emergency Interface Relay (EIR) Modules provide interface with approved fire or other emergency systems. Output voltage at 12 or 24 Volts DC is field selectable. Built-in battery charging systems allow a constant charge of optional standby battery backups. Tan baked enamel, NEMA Grade 1 approved enclosures all have conduit knockouts and key lock hinged covers.
SPECIFICATIONS:
Input Voltage: 120V AC 60hz
Output Voltage: 2V DC or 24V DC
Output Current: 1 Amp Max
Battery Charger Output: 500mA @ 13.5 or 27VDC
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

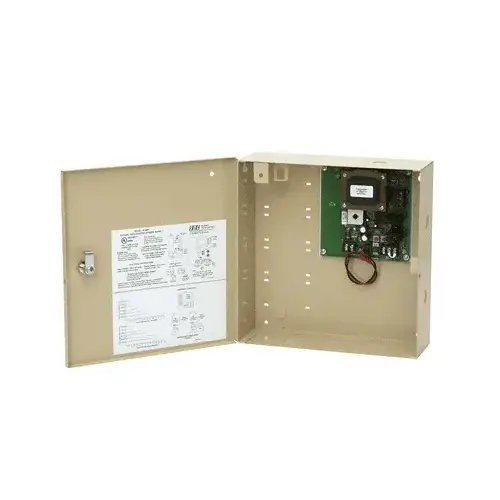

SDC PS602RFKL Low Voltage 1 Amp Regulated Power Supply
Item #: PS602RFKL by Security Door Controls - SDC
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Regulated and Filtered
- Emergency Interface Relay (EIR) with Fire or Other Emergency Systems
- Output Voltage at 12V or 24V DC is Field Selectable
- Locked Hinged
- Built-In Battery Charging System for Optional Standby Battery Backups
Enclosure Height
11-1/2 in. (292 mm)
Enclosure Depth
3-1/2 in. (89 mm)
Enclosure Length
11-1/2 in. (292 mm)
Enclosure Size
11-1/2" x 11-1/2" x 3-1/2" (292 x 292 x 89 mm)
Brand
SDC
Output Current
1 Amp
Height
11-1/2
Width
11-1/2
Depth
3-1/3
Product Overview
These CRL SDC Power Supplies are designed to make it easy and cost effective to power electrical locking systems. They provide regulated, filtered, low voltage DC power to interface with locking devices, station controls, and consoles. Emergency Interface Relay (EIR) Modules provide interface with approved fire or other emergency systems. Output voltage at 12 or 24 Volts DC is field selectable. Built-in battery charging systems allow a constant charge of optional standby battery backups. Tan baked enamel, NEMA Grade 1 approved enclosures all have conduit knockouts and key lock hinged covers.
SPECIFICATIONS:
Input Voltage: 120V AC 60hz
Output Voltage: 2V DC or 24V DC
Output Current: 1 Amp Max
Battery Charger Output: 500mA @ 13.5 or 27VDC
