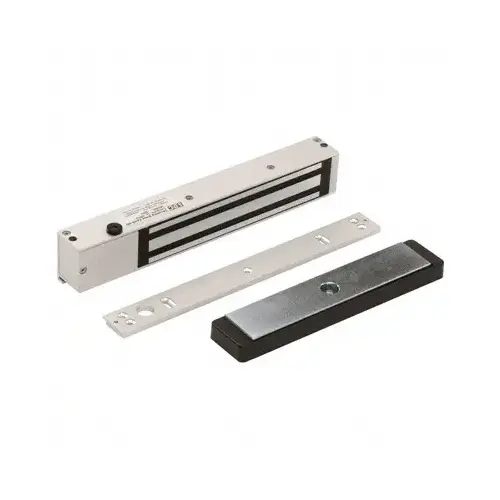

The CRL SDC EMLock Single Narrow Profile Electromagnetic Lock provides 1200 pounds holding force and fail safe access control for perimeter and interior doors that meets building security and fire life safety code requirements. The project only 2-11/16" (68 mm) into the opening, enabling it to blend in exceptionally well with virtually any narrow frame.
SPECIFICATIONS:
Holding Force: 1200 Lbs. (544 kg)
Input Voltage: 12/24 Volts
DC - Automatic Selection
Single EMLock
12 Volt Current Draw: 540mA
24 Volt Current Draw: 300mA
Dimensions: L = 12-1/2" (318 mm) x H = 2-1/8" (54 mm) x W = 1-11/16" (43 mm)
Weight: 9.5 lbs. (4.3 kg)
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
SDC SDC350A EMLock Narrow Profile Single Electromagnetic Lock
Item #: SDC350A by Security Door Controls - SDC
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1200 Lbs. Holding Force
- ANSI/BHMA Grade 1 Compliant
- Full Monitoring Standard
- Fully Automatic 12/24VDC Selection
- Narrow Profile Body Will Retrofit Discontinued Locknetics® 350+ Magnetic Lock Without Modifications
Brand
SDC EMLock
Type
Single Electromagnetic Lock,Single Electromagnetic Lock
Height
2-1/8
Length
12-1/2
Width
1-11/16
UL Listed
Yes
Certification
ANSI/BHMA Grade 1,ANSI/BHMA Grade 1
Input Voltage
12/24 Volts,12/24 Volts
Holding Force (Pounds)
12001200
Holding Force
12001200
Product Overview
The CRL SDC EMLock Single Narrow Profile Electromagnetic Lock provides 1200 pounds holding force and fail safe access control for perimeter and interior doors that meets building security and fire life safety code requirements. The project only 2-11/16" (68 mm) into the opening, enabling it to blend in exceptionally well with virtually any narrow frame.
SPECIFICATIONS:
Holding Force: 1200 Lbs. (544 kg)
Input Voltage: 12/24 Volts
DC - Automatic Selection
Single EMLock
12 Volt Current Draw: 540mA
24 Volt Current Draw: 300mA
Dimensions: L = 12-1/2" (318 mm) x H = 2-1/8" (54 mm) x W = 1-11/16" (43 mm)
Weight: 9.5 lbs. (4.3 kg)
