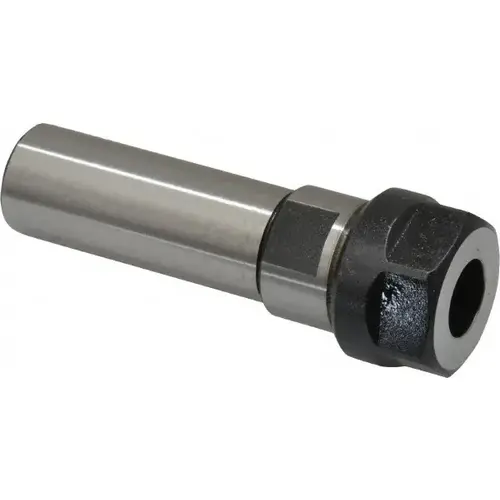

Scully Jones 5228Click To Copy Collet Chuck: 0.0394 to 0.4063" Capacity, ER Collet, Straight Shank

Item #: 5228 by Scully Jones

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$343.64

/each
SAVE UP TO 34.36

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight

Overall Length (mm)

85.10

Actuator Type

Wrench

Collet Series

ER16

Collet System

ER

Maximum Collet Capacity (Decimal Inch)

0.4063

Minimum Collet Capacity (Decimal Inch)

0.0394

Product Service Code

5136

Projection (Decimal Inch)

1.3819

Shank Diameter (Inch)

3/4

Shank Length (mm)

50.00

Through Coolant

Yes

TIR (Decimal Inch)

0.000800

Vendor Drop Ship

N

Coolant Type

Through-Spindle

Hex Diameter (mm)

32.00

Product Overview
Collet Chuck: 0.0394 to 0.4063" Capacity, ER Collet, Straight Shank 1.3819" Projection, 0.0008" TIR, Through Coolant
