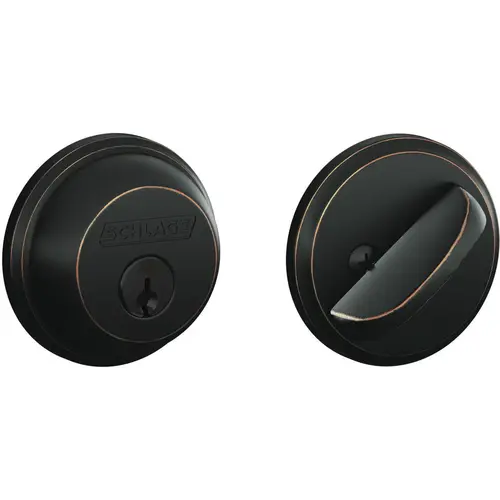

Schlage Residential B60N6-716-12-287-10-116 B60N716 12-287 10-116 K4 1-Cyl Deadbolt - Aged Bronze
Item #: B60N6-716-12-287-10-116 by Schlage Residential
UPC #: 043156169221
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Aged Bronze
Grade
ANSI/BHMA Grade 1
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Keyway
SC1 5-Pin Pin & Tumbler
Function
Single Cylinder
Cylinder Type
Conventional Cylinder
Finish Description
Aged Bronze
Keyblank Grouping
SCHR-C-6-1
Rose/Escutcheon Trim
Round Rose
Keying Charges
Residential-Conventional
Product Type
Auxiliary Lock
Series
BN Series
Box Length
5.6600
Box Width
4.3800
Box Height
2.8600
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Sub-Series
RL_Deadbolts_Schlage_Residential_10
ADA Compliant
No
Door Cross Bore
2.125 Inch
Application
Residential
Style
Radius Corner
Box Dimensions (L x W x H)
2.86x4.38x5.66"
Function Family
Single Cylinder Deadbolt
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Door Thickness
1-3/8" to 1-3/4"
Features
Deadbolt Thrown or Retracted by Key From Outside or by Inside Turn Unit; Bolt Automatically Deadlocks When Fully Thrown; Door Frame Strike Reinforcer With 3" Screws
Product Material
Metal
Color Code
643E/US11/716
Warranty
Lifetime Limited Mechanical/Finish
Included Components
(2) Keys; Strike; Latches
Finish Family
Antique Bronze
Collection
Deadbolts
Package Height
3.06"
Package Length
8.14"
Package Width
4.37"
Item Weight
1.58 lbs
Product Overview
The Schlage Single Cylinder Deadbolt in Aged Bronze is perfect for use on exterior doors and adds an extra layer of security to your exterior handleset or knob/lever. When finished in Aged Bronze, the deadbolt features warm, copper tones that break through a darker, aged exterior. Plus, it's been designed and tested with strength and durability in mind.
