Satin Brass Vienna 537 Series Wall Mount Hinge with Internal 5 Degree Pin

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

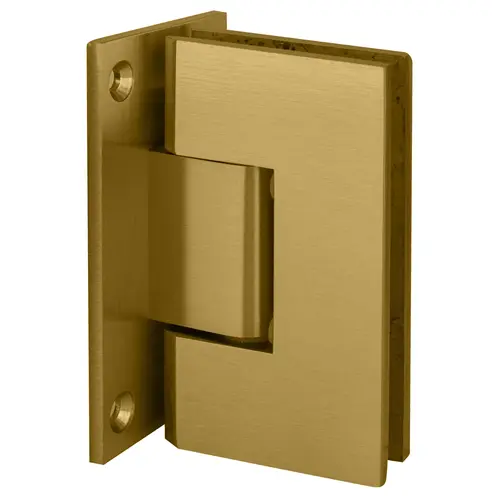

CRL ALUM-V1E537SB-VCP-1 Satin Brass Vienna 537 Series Wall Mount Hinge with Internal 5 Degree Pin

Item #: ALUM-V1E537SB-VCP-1 by CR Laurence

See reviewsSee reviews
In Stock

$65.36

/each
SAVE UP TO 6.54

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
  • Use Monolithic Tempered Glass

Shipping Weight

1 lb (454g)

Width

2-1/4

Height

3-15/16

Finish

Satin Brass

Back Plate

Full

Glazing Thickness

3/8, 1/2

Maximum Door Width

36

Adjustable

No

Finish/Color

Satin Brass

Series

Vienna

Self-Centering

Yes

5 Degree Pre-Set

Yes

Maximum Door Weight - 3 Hinges (Pounds)

140

Maximum Door Weight - 2 Hinges (Pounds)

110

Mounting Type

Wall Mount

Material

Brass

Positive Close

No

Maximum Door Weight - 2 Hinges

110 lbs. (49.9 kg)

Maximum Door Weight - 3 Hinges

140 lbs. (63.5 kg)

Mounting Style

Wall mount

Height (Inches)

3-15/16

Max Dr Weight - 3 Hinges (Lbs)

140

Max Dr Weight - 2 Hinges (Lbs)

110

Width (Inches)

2-1/4

Maximum Clamping Screw Torque

60 lbf.in (677.9 cN.m)

Opening Style

Swing(side)

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Design Style

Squared
