These CRL Vertical Sliding Service Windows have one lower sliding panel and one fixed upper panel. They are normally supplied with vinyl to accommodate 1/4" (6 mm) glazing materials, but some models can be ordered pre-glazed with 1/4" (6 mm) tempered glass. Some units are also available with a sliding screen. All windows are shipped assembled, ready for glazing and installation.
NOTE: Windows exceeding 1050 square inches (width x height) will require a covered top to conceal sash balances. An overhang or awning is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or KYNAR Painted
Glazing: 1/4" (6 mm) Vinyl Only
Installation Instructions Included
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

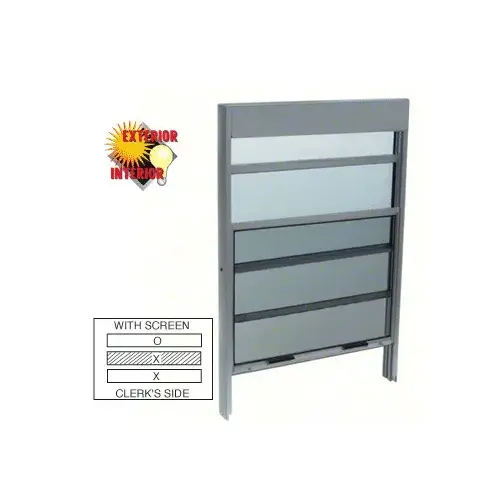

CRL SWB1200A Satin Anodized Vertical Sliding Service Windows With Sash Balance, 1/4" Vinyl Glazing with Screen
Item #: SWB1200A by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Light Duty Applications of 50 or Fewer Uses Per Day
- Available With or Without a Screen
- For Windows Exceeding 1050 Square Inches (Width x Height)
- Available Pre-Glazed or Non-Glazed
- Available in Vertical and Horizontal Formats
- Each Unit is Customized to Fit Your Needs
Glazing
1/4" (6 mm) Vinyl Only
Screen
Yes
Panels
O = Fixed, X = Sliding
Finish
Satin Anodized
Material
Aluminum
Window Style
Vertical Sliding
Glazing Thickness
1/4
Finish/Color
Satin Anodized
Panel Designation
O = Fixed, X = Sliding
Glazed
No
Configuration
One Lower Sliding & One Fixed Upper Panel
Product Overview
These CRL Vertical Sliding Service Windows have one lower sliding panel and one fixed upper panel. They are normally supplied with vinyl to accommodate 1/4" (6 mm) glazing materials, but some models can be ordered pre-glazed with 1/4" (6 mm) tempered glass. Some units are also available with a sliding screen. All windows are shipped assembled, ready for glazing and installation.
NOTE: Windows exceeding 1050 square inches (width x height) will require a covered top to conceal sash balances. An overhang or awning is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or KYNAR Painted
Glazing: 1/4" (6 mm) Vinyl Only
Installation Instructions Included
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
