CRL's 12 ft (3.66 m) Deluxe Rolling Track Assemblies provide three options for Upper Track Extrusions, depending on your design preference. This system is ideally suited where frequency of use requires ease of operation and years of reliable service. These Assemblies have many finish options. This Rolling Track Assembly is one of our most popular systems, and you will find it to be one of the most user friendly, trouble-free tracks available anywhere. CRL also has a large selection of Locks available to secure the sliding doors. CRL Ratchet and Plunger Type Locks are available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

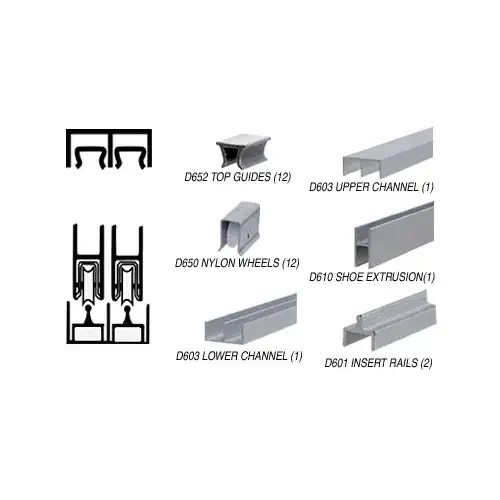

Components for D2301A
D601 (x2)
D603 (x2)
D610 (x1)
D650 (x12)
D652 (x12)
D9650 (x1)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
If you need a very tight fit, you should figure your own dimensions. The dimensions shown are just guideline dimensions that are satisfactory to most installers.
D2200 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/16"
D2203 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
D2307 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL D2301A Satin Anodized Deluxe Track Assembly D603 Upper and D601 Rail with Nylon Wheels 144" Stock Length
Item #: D2301A by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 12' (3.66 m) Length
- Available in Up to Six Stock Finishes, Including New Brushed Nickel
- D2301 Series
- Designed for Quick and Easy Installation
- Ideal for Commercial or Residential Applications
- With D650 Nylon Wheels
Length
12' (3.66 m)
Shipping Weight
4 lb (1.81kg)
Finish
Satin Anodized
Wheels Type
Nylon
Type
D603 Upper and D601 Rail W/Nylon Wheels
Material
Aluminum
Glazing Thickness
1/4
Finish/Color
Satin Anodized
Anti-Lift Feature
No
Components
D603A,D652,D610A,D649,D601A,D603A
Product Overview
CRL's 12 ft (3.66 m) Deluxe Rolling Track Assemblies provide three options for Upper Track Extrusions, depending on your design preference. This system is ideally suited where frequency of use requires ease of operation and years of reliable service. These Assemblies have many finish options. This Rolling Track Assembly is one of our most popular systems, and you will find it to be one of the most user friendly, trouble-free tracks available anywhere. CRL also has a large selection of Locks available to secure the sliding doors. CRL Ratchet and Plunger Type Locks are available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).
Components for D2301A
D601 (x2)
D603 (x2)
D610 (x1)
D650 (x12)
D652 (x12)
D9650 (x1)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
If you need a very tight fit, you should figure your own dimensions. The dimensions shown are just guideline dimensions that are satisfactory to most installers.
D2200 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/16"
D2203 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
D2307 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
