CRL Overhead Track Half Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The end panels act like normal center pivoting doors and connect to the first hanging panel using special hinged end caps. The hanging panels are joined in the same manner, and are hung from a single Cat. No. 0TCA Carriage Assembly at the midpoint of the panel's width.
Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 41" (1.04 m). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact DK Hardware Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

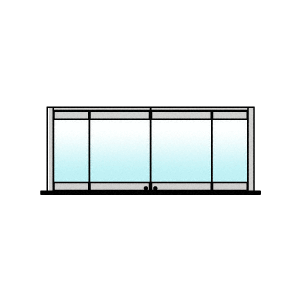

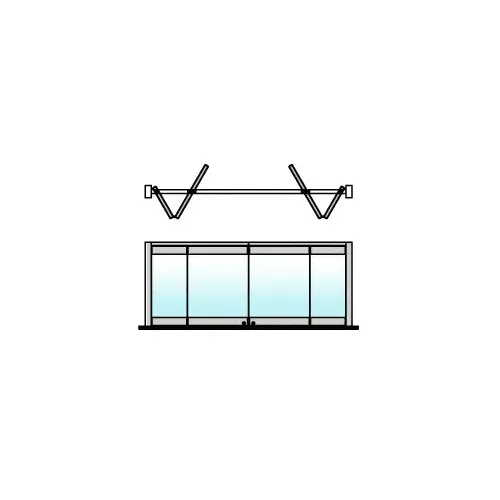

CRL 0TC4BPSA Satin Anodized 4-Panel Bipart Overhead Track Half Bi-Fold Door Configuration
Item #: 0TC4BPSA by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Panels Hung From Mid-Point, Maximizing Panel Width
- Provides a Flush Bottom Surface
- With 4" (102 mm) Square DR4S Series Door Rails
Type
Half Bi-Fold Door Configuration
Panel
4-Panel
Finish
Satin Anodized
Glazing Thickness
3/8, 1/2
Maximum panel width
41
Finish/Color
Satin Anodized
Series
OT Overhead Track Bi-Fold
Door Bottom Rail (3/8 Inch Glass)
DR4SSA38C
Door Top Rail (1/2 Inch Glass)
DR4SSA12C
Door Bottom Rail (1/2 Inch Glass)
DR4SSA12C
Door Top Rail (3/8 Inch Glass)
DR4SSA38C
Configuration
Single Track Half Leaf 2 Panels Left 2 Panels Right
Product Overview
CRL Overhead Track Half Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The end panels act like normal center pivoting doors and connect to the first hanging panel using special hinged end caps. The hanging panels are joined in the same manner, and are hung from a single Cat. No. 0TCA Carriage Assembly at the midpoint of the panel's width.
Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 41" (1.04 m). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact DK Hardware Sales Department.
