CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 3/4" (19 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

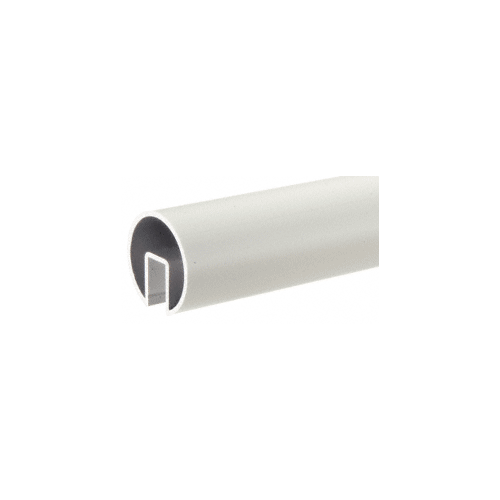

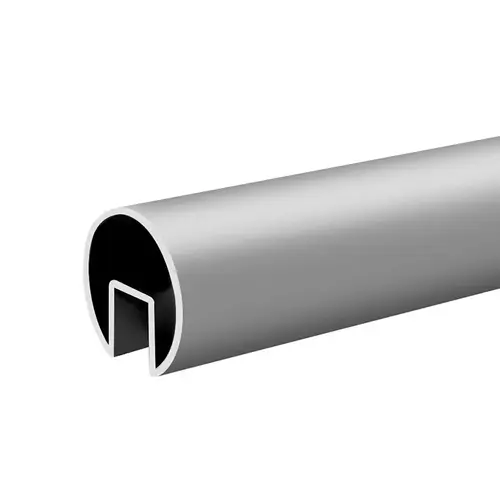

CRL GR307SA Satin Anodized 3" Extruded Cap Rail for 3/4" Glass - 240"
Item #: GR307SA by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available for 1/2", 9/16" or 5/8" (12, 13.52, or 16 mm) and 3/4" (19 mm) Glass
- Connects to a Variety of Fabricated Corners and End Caps
- Custom Shapes and Sizes are Available
- Use Sleeve Number GR30CSM
Grade
6063-T6
Thickness
.125" (3.2 mm)
"D" Depth
1-11/16" (43 mm)
"W" Width
1" (25.4 mm)
Type
Extruded Cap Rail
Finish
Satin Anodized
Diameter
3
Material
6063-T6 Aluminum
Finish/Color
Satin Anodized
Product Overview
CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 3/4" (19 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
