Satin Anodized 115V AC "X" Model Counter-Top Two-Way Electronic Communicator

Roll over image to zoom in

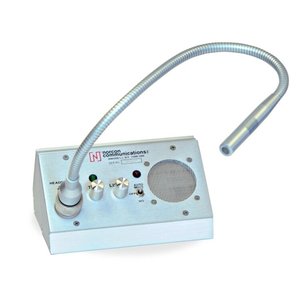

Norcon Communications TTU-3-X Satin Anodized 115V AC "X" Model Counter-Top Two-Way Electronic Communicator

Item #: TTU-3-X by Norcon Communications

1 1 reviews
In Stock

$1,969.40

/each
SAVE UP TO 196.94

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Can be mounted on a countertop on both sides of the barrier.
  • Allows clear and calm communication without the need for shouting and repetition.
  • Comes with a high audio frequency response, allowing excellent voice audibility with the least distortion.
  • No requirement to cut a hole in the barrier, a hassle-free installation.
  • Features VOX circuitry for a crystal clear communication.

Width

6

Depth

2-3/8

Shipping Weight

4 lb (1.81kg)

Height

2-3/8

Material

Aluminum

Microphone Inclued

yes, Removable Microphone

Shaped

Prism

Mounting

Partition hole 3-4" di (3-1/2" recommended)

Type

Removable Microphone

Gooseneck Size

18"

Audio Frequency Response

Selectively shaped for maximum voice intelligibility

Audio Power

2 Amplifiers (2 watts per amplifier)

Distortion

Less than 2%

Inside And Outside Units

6" (w) x 2-3/8" (h) x 2-3/8" (d)

Listen Mode

20 db compression

Microphones

Electret

Power Supply Input

100-240 VAC

Power Supply Output

15 VDC, 1A

Talk Mode

Vox (voice activated)

Finish

Satin Anodized

Shape

Prism

Weight

4 lbs

Finish/Color

Satin Anodized

Power Supply Required

115V AC


The CRL Norcon Counter Top Two-Way Electronic Communicator is the unit of choice when it is impractical to cut a hole through a glass isolation barrier. In its Auto-Mute mode the communicator is automatically activated when the clerk speaks for hands-free operation. Talk and listen volumes are adjustable by the clerk. The new "X" Series models all have a removable gooseneck microphone.
The New "X" Series Norcon Communicators all have a removable gooseneck microphone, and all models include a receptacle for use with the optional TTU1HS Hands-Free Headset. All Norcon units are supplied complete with mounting hardware, instructions, and power supply. All exposed hardware is tamper resistant. Unit operates on 115V AC current. For additional information, contact DK Hardware Sales Department.
NOTE: 12V DC not available in Counter Top Models.
SPECIFICATIONS:
Material: Aluminum
Finish: Satin Anodized
Instructions Included

.
