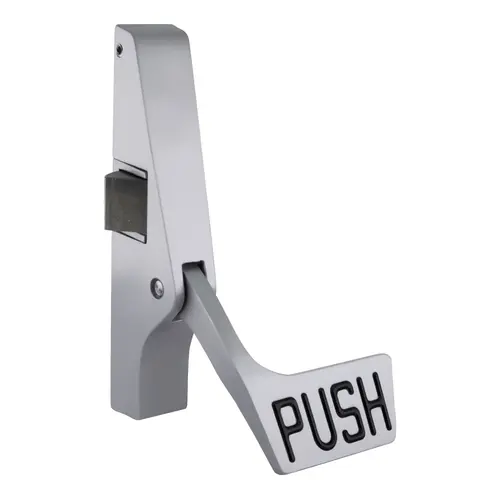

Jackson 311095PLC628 Satin Aluminum 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device

Item #: 311095PLC628 by Jackson

See reviews See reviews
In Stock

$67.65

/each
SAVE UP TO 6.77

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
  • Concealed Fastening for Added Security
  • Available with Crossbar or Engraved "Push" Paddle Operation on Active Side

Brand

Jackson

Handing

Left Hand Reverse

Type

Rim - C-Strike

Finish

Aluminum

Certification

ANSI/BHMA 156.3

Finish/Color

Aluminum

Material - Mechanical Components

Stainless and Hardened Plated Steel

Paddle Push Width (Inches)

3-3/8

Recommended Door Type

Narrow,Medium,Wide Stile,Aluminum,Wood,Hollow Metal

Minimum Stile Width (Inches)

1-3/4

Panic Head Base Width

1-1/4

Material - Housing

Aluminum

Panic Type

Rim (Paddle)

Replacement Parts

30115,301117628,301409,DL911SCKDA,DL911SCKAA

Material - Latch & Strike

Sintered Steel

Panic Head Height (Inches)

7-5/16

Panic Bar Projection (Inches)

4-5/8

Panic Dogging

Screw Driver

Model

1095 Paddle

Door Thickness

1-3/4

UL Listed

Yes

Includes

Mounting Hardware

For Door Thickness

1-3/4 Inch

Manufacturer Parent

CRH

Device Rating

Panic Exit Hardware

Finish Description

Satin Aluminum

Stile

Wide Stile

For Door Height

7 Foot

Function

Exit Only

Hand

Left Hand Reverse

Sub-Series

EDT_Rim_Devices_crl_jackson_2

Fire Rated

No

ADA Compliant

No

Application

Narrow; Medium and Wide Stile Aluminum; Wood or Hollow Metal Doors

Device Type

Rim Device

Function Family

Exit Only Device

Device Length

48 Inch (4 Foot)

Product Type

Exit Device

Features

Wear Points Insulated by Nylon Sleeves and Rollers; Requires Rim Cylinder for Keyed Entry; Cylinder Mounting Pad Not Required; Concealed Fastening for Added Security

Dogging Options

Dual Dogging

Finish Family

Aluminum

Door Type

Aluminum, Hollow Metal, Wood

exit device type

Rim Exit

Bar Style

Paddle

Alternate Part Number-1

109384

Minimum Stile Width

1-3/4 in. (44.5 mm)

Panic Head Height

7-5/16 in. (185.7 mm)

Panic Bar Projection

4-5/8 in. (117.5 mm)

Paddle Push Width

3-3/8 in. (85.7 mm)


CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This paddle is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.
SPECIFICATIONS:
  • Contoured Field Sizeable 48" (1.22 m) Long Crossbar
  • Dual Dogging Feature – By Outside Cylinder - By Dogging Pins on Panic Housing
  • Wear Points Insulated by Nylon Sleeves and Rollers
    1095 Rim Device
  • Requires Rim Cylinder for Keyed Entry
  • Cylinder Mounting Pad Not Required
    MATERIALS:
  • Body and Arms: High Tensile Strength Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel

    .
