CRL's DL1190 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 mm) length cross bar that can be field cut to fit your exact door size requirements.
DL1190 Series Rim Panics
• Handed, Non-Reversible
• For Use with Aluminum or Hollow Metal Doors
• Standard Surface Mounted Roller Type Rim Strike Supplied
• Keyed Entry Requires Optional CRL DL911SC Series, or other brand, Rim Cylinder (No Mounting Pad Required)
Product Warning:
This Rim Exit Device is handed. Handing is determined from the OUTSIDE or LOCK SIDE of the door. When outside, if the hinge is on the left, the door will swing out (towards you) the panic device needs to be a LHRB (Left Hand Reverse Bevel). If the hinge is on the right, the door will swing out (towards you) the Panic Device needs to be a RHRB (Right Hand Reverse Bevel).
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

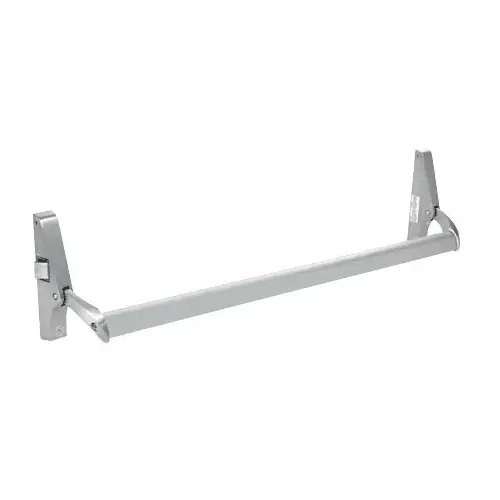

CRL DL1190LHRA Satin Aluminum Cross Bar Panic Exit Device - Left Hand Reverse Bevel Rim
Item #: DL1190LHRA by CR Laurence
3 3
reviews
In Stock
$153.41
/eachSAVE UP TO 15.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- Available as Concealed Vertical Rod and Rim Exit Devices
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
Color
Aluminum
Type
Left Hand-Reverse Bevel Rim
Finish
Satin Aluminum
Material
Aluminum
Handing
Non Handed
Model
DL1190
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
Certification
ANSI A156.3 Grade 1
Finish/Color
Satin Aluminum
Panic Bar Width Net
48
Recommended Door Type
Aluminum,Wood,Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Similar
311095LC4313
Panic Head Base Width
1-1/4
Panic Bar Base Height (Inches)
2
Panic Type
Surface Vertical Rods
Replacement Parts
DL911SCKDA,DL911SCKAA
Panic Head Height (Inches)
7-5/16
Panic Bar Projection (Inches)
4-5/8
Panic Dogging
Screw Driver
Minimum Stile Width
1-3/4
Panic Bar Base Height
2
Panic Head Height
7-5/16
Panic Bar Projection
4-5/8
CRL's DL1190 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 mm) length cross bar that can be field cut to fit your exact door size requirements.
DL1190 Series Rim Panics
• Handed, Non-Reversible
• For Use with Aluminum or Hollow Metal Doors
• Standard Surface Mounted Roller Type Rim Strike Supplied
• Keyed Entry Requires Optional CRL DL911SC Series, or other brand, Rim Cylinder (No Mounting Pad Required)
Product Warning:
This Rim Exit Device is handed. Handing is determined from the OUTSIDE or LOCK SIDE of the door. When outside, if the hinge is on the left, the door will swing out (towards you) the panic device needs to be a LHRB (Left Hand Reverse Bevel). If the hinge is on the right, the door will swing out (towards you) the Panic Device needs to be a RHRB (Right Hand Reverse Bevel).
.
