This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
Standard Height 84" (2.13 m) - Extension Available
Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Product Warning:
If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

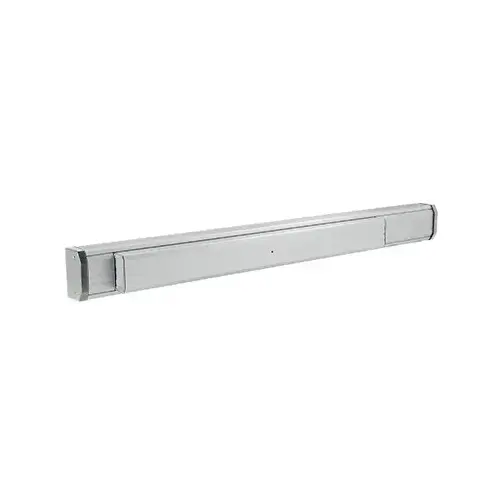

Jackson 311285L37628 Satin Aluminum 36" 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device
Item #: 311285L37628 by Jackson
1 1
reviews
In Stock
$336.40
/eachSAVE UP TO 33.64
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- "Soft-Touch" Smooth Action Push-Pad
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
Type
Concealed Vertical Rod
Size
36" (914 mm)
Handing
Left Hand Reverse Bevel (LHR)
Brand
Jackson
Finish
Aluminum
Door Height
84
Certification
ANSI/BHMA 156.3
Finish/Color
Aluminum
Panic Bar Width Net
34.5
Push Pad Width
24
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile And Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Tall Door Extention Rods
301347301348
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
3-3/16
Panic Type
Concealed Vertical Rods
Replacement Parts
302861,30821J628
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Bar Projection (Inches)
2-7/8
Panic Dogging
Standard Hex Key Dogging
Model
1285
Door Thickness
1-3/4
Door Width
36
UL Listed
Yes
Includes
Mounting Hardware
Alternate Part Number-1
178386
Door Material
Aluminum; Hollow Metal
Dogging Options
Hex Key Dogging
Color Code
628
Features
Trigger Action Locking Release; Positive 5/8" Top and Bottom Bolt Throw
Product Type
Exit Device
Device Length
36 Inch (3 Foot)
Standards
ANSI A156.3; UL305 Listed
Device Type
Concealed Vertical Rod Device
Application
Narrow; Medium and Wide Stile Doors
Sub-Series
EDT_Concealed_Ver_Rod_Devices_CRL_Jackson_12
Hand
Left Hand Reverse
Manufacturer Parent
CRH
Minimum Stile Width
1-3/4 in. (44.5 mm)
Panic Bar Base Height
3-3/16 in. (81 mm)
Panic Bar Projection
2-7/8 in. (73 mm)
This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Product Warning:
If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
.
