Turning Insert: TNMG331R-K 4425, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 7861218-XCP10Click To Copy Turning Insert: TNMG331R-K 4425, Solid Carbide - pack of 10

Item #: 7861218-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$283.15

/package
SAVE UP TO 28.31

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

6

Included Angle

60

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

TNMG 331R-K

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Secondary Workpiece Material

Cast Iron

Insert Hand

Right Hand

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

Triangle

Clearance Code

N

Insert Shape Code

T

Chip Breaker

K

Secondary Workpiece Material Code

K

Insert Style

TNMG

Insert Size Code

1604

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Manufacturer Grade

4425

Corner Radius (mm)

0.40

Iso Code

TNMG 16 04 04R-K 4425

Product Overview

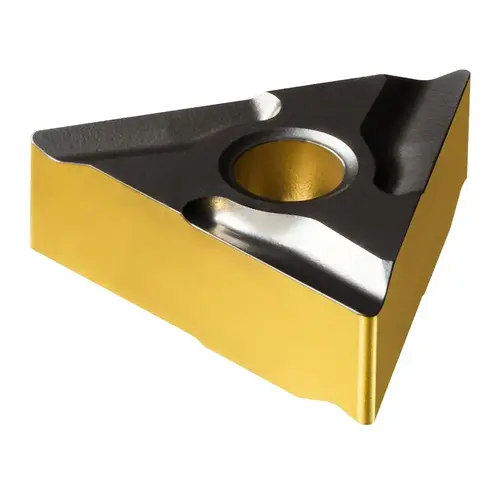

Turning Insert: TNMG331R-K 4425, Solid Carbide Al2O3, TiN & TiCN Coated, Right Hand, 3/8" Inscribed Circle, 0.4 mm Corner Radius, 60 degree Triangle, Series T-Max P
