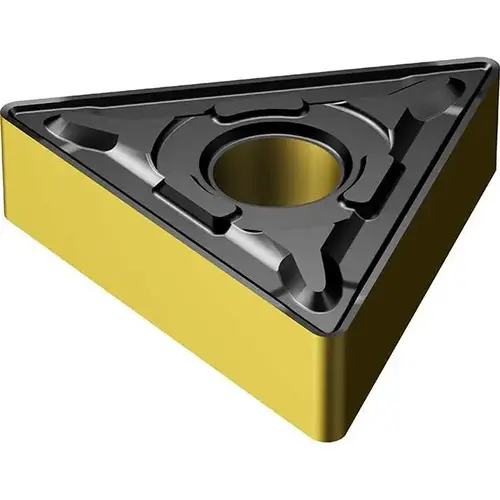

Turning Insert: TNMG1604 08-PR 4425, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 7860999Click To Copy Turning Insert: TNMG1604 08-PR 4425, Solid Carbide TiCN

Item #: 7860999 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$28.32

/each
SAVE UP TO 2.83

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

6

Insert Thickness

4.76

Included Angle

60

Insert Material

Carbide

Series

T-Max P

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TNMG 332-PR 4425

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Shape

T - Triangle

Clearance Code

N

Insert Shape Code

T

Chip Breaker

PR

Secondary Workpiece Material Code

K

Insert Style

TNMG

Insert Size Code

1604

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Chip Breaker Operation

Roughing

Manufacturer Grade

4425

ISO Size Code

160408

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

332

Inscribed Circle (mm)

9.53

ISO Insert Code

TNMG160408

Corner Radius (mm)

0.79

Iso Code

TNMG 16 04 08-PR 4425

ANSI Insert Code

TNMG332

Product Overview
Turning Insert: TNMG1604 08-PR 4425, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 3/8" Inscribed Circle, 0.79 mm Corner Radius, 60 degree Triangle, Series T-Max P
