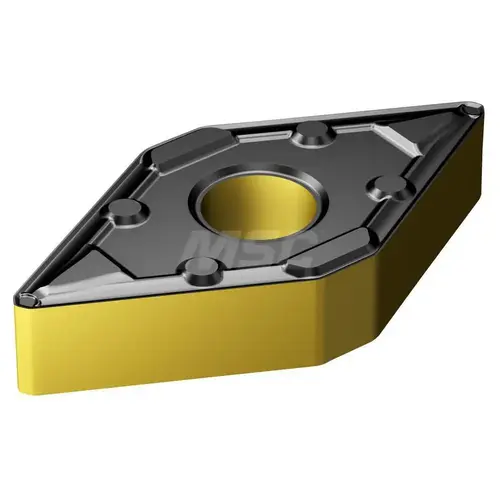

Turning Insert: DNMX332-WF 4425, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 7860888Click To Copy Turning Insert: DNMX332-WF 4425, Solid Carbide TiCN

Item #: 7860888 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$41.37

/each
SAVE UP TO 4.14

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 58 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Insert Thickness

4.76

Included Angle

55

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

DNMX 332-WF 4425

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

Yes

Inscribed Circle (Decimal Inch)

0.1500

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

D

Chip Breaker

WF

Secondary Workpiece Material Code

K

Insert Style

DNMX

Insert Size Code

1104

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Manufacturer Grade

4425

Inscribed Circle (mm)

9.53

Corner Radius (mm)

0.79

Iso Code

DNMX 11 04 08-WF 4425

Product Overview
Turning Insert: DNMX332-WF 4425, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 9.53 mm Inscribed Circle, 0.79 mm Corner Radius, 55 degree Diamond, Series T-Max P
