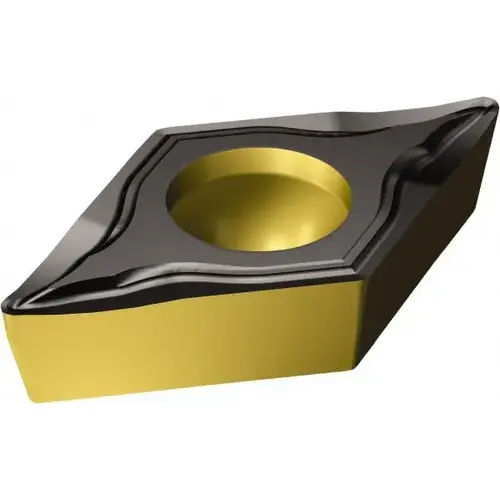

Turning Insert: DCMT32.52-UM 4335, Solid Carbide TiCN

Roll over image to zoom in

Sandvik Coromant 7080751Click To Copy Turning Insert: DCMT32.52-UM 4335, Solid Carbide TiCN

Item #: 7080751 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$33.90

/each
SAVE UP TO 3.39

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 37 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Number of Cutting Edges

2

Insert Thickness

3.97

Included Angle

55

Insert Material

Carbide

Series

CoroTurn 107

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

D

Chip Breaker

UM

Insert Style

DCMT

Insert Size Code

32.52

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Manufacturer Grade

4335

Corner Radius (mm)

0.79

Iso Code

DCMT 11 T3 08-UM 4335

Product Overview
Turning Insert: DCMT32.52-UM 4335, Solid Carbide TiCN, AI2O3 & TiN Coated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series CoroTurn 107
