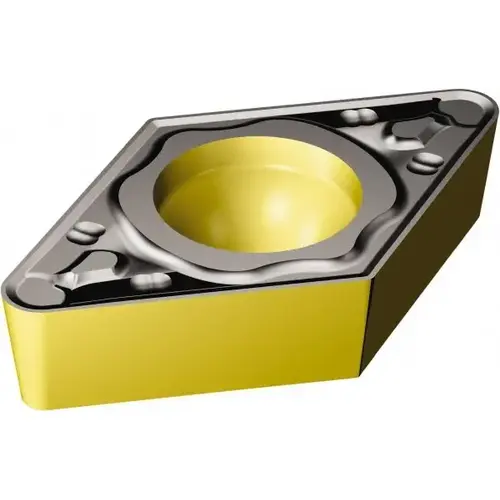

Sandvik Coromant 6868261 Turning Insert: DCMT32.53-KR 3225, Solid Carbide TiCN

Item #: 6868261 by Sandvik Coromant

See reviewsSee reviews
See reviews summary

$29.10

/each
SAVE UP TO 2.91
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

3/64

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

C

Insert Shape Code

D

Chip Breaker

KR

Insert Style

DCMT

Insert Size Code

32.53

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

10.43

Chip Breaker Operation

Roughing

Manufacturer Grade

3225

ISO Size Code

11T312

Grade Characteristics

Cast Iron (K) - High Wear-Resistance to High Toughness

ANSI Size Code

32.53

ISO Insert Code

DCMT11T312

Corner Radius (mm)

1.19

Iso Code

DCMT 11 T3 12-KR 3225

ANSI Insert Code

DCMT32.53

Cutting Edge Style

Rounded

Number of Cutting Edges

2

Insert Thickness

3.97

Included Angle

55

Insert Material

Carbide

Series

CoroTurn 107

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Product Overview
Turning Insert: DCMT32.53-KR 3225, Solid Carbide TiCN, AI2O3 & TiN Coated, Neutral, 3/8" Inscribed Circle, 3/64" Corner Radius, 55 degree Diamond, Series CoroTurn 107
