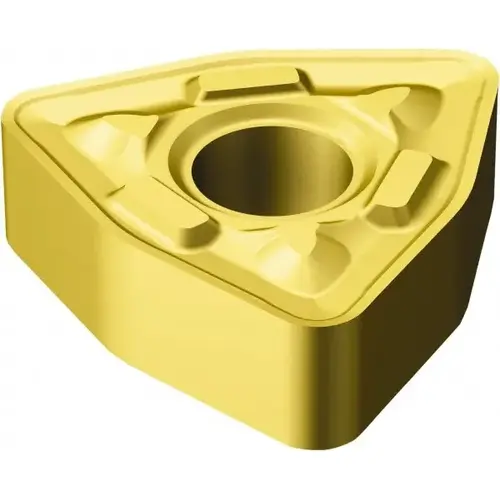

Turning Insert: WNMG432-MR 2035, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5756561Click To Copy Turning Insert: WNMG432-MR 2035, Solid Carbide TiAlN

Item #: 5756561 by Sandvik Coromant

See reviewsSee reviews
See reviews summary

$31.06

/each
SAVE UP TO 3.11

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

6

Insert Thickness

4.76

Included Angle

80

Insert Material

Carbide

Series

T-Max P

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3105

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

7.89

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Clearance Code

N

Insert Shape Code

W

Chip Breaker

MR

Insert Style

WNMG

Insert Size Code

0804

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

2035

Length Range (Decimal Inch)

0.3000 - 0.4000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.79

Iso Code

WNMG 08 04 08-MR 2035

Product Overview
Turning Insert: WNMG432-MR 2035, Solid Carbide TiAlN & TiN Coated, Neutral, 0.3105" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series T-Max P
