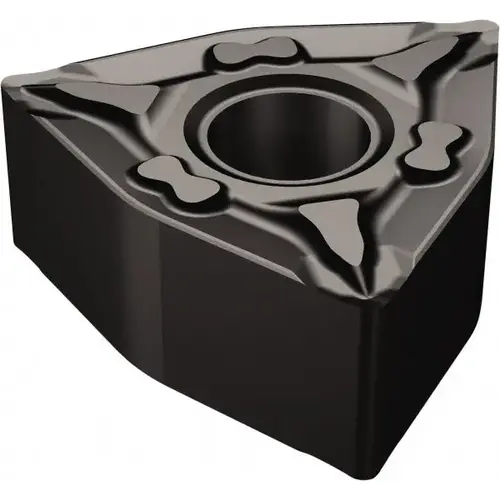

Turning Insert: WNMG432-MF 1105, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5756484-XCP10Click To Copy Turning Insert: WNMG432-MF 1105, Solid Carbide - pack of 10

Item #: 5756484-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$330.40

/package
SAVE UP TO 33.04

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 27 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

6

Insert Thickness

4.76

Included Angle

80

Insert Material

Carbide

Series

T-Max P

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3105

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Secondary Workpiece Material

Superalloy

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

7.89

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Clearance Code

N

Insert Shape Code

W

Chip Breaker

MF

Secondary Workpiece Material Code

S

Insert Style

WNMG

Insert Size Code

0804

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

1105

Length Range (Decimal Inch)

0.3000 - 0.4000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.79

Iso Code

WNMG 08 04 08-MF 1105

Product Overview
Turning Insert: WNMG432-MF 1105, Solid Carbide TiAlN Coated, Neutral, 0.3105" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series T-Max P
