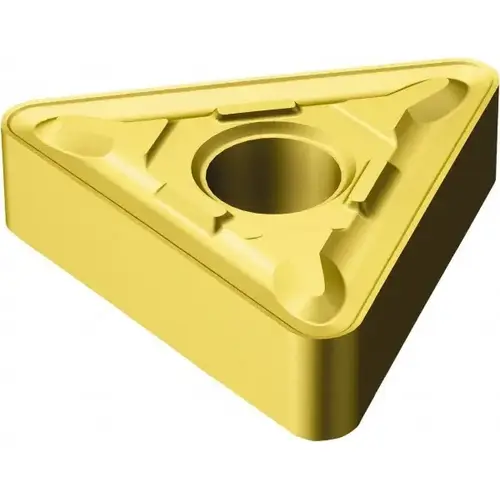

Turning Insert: TNMG432-MR 2025, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5754245Click To Copy Turning Insert: TNMG432-MR 2025, Solid Carbide TiCN

Item #: 5754245 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$34.72

/each
SAVE UP TO 3.47

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

6

Insert Thickness

4.76

Included Angle

60

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.8345

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

21.20

Corner Radius (Inch)

1/32

Insert Shape

Triangle

Clearance Code

N

Insert Shape Code

T

Chip Breaker

MR

Insert Style

TNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

2025

Length Range (Decimal Inch)

0.7000 - 10.0000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.79

Iso Code

TNMG 22 04 08-MR 2025

Product Overview
Turning Insert: TNMG432-MR 2025, Solid Carbide TiCN, AI2O3 & TiN Coated, Neutral, 0.8345" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series T-Max P
