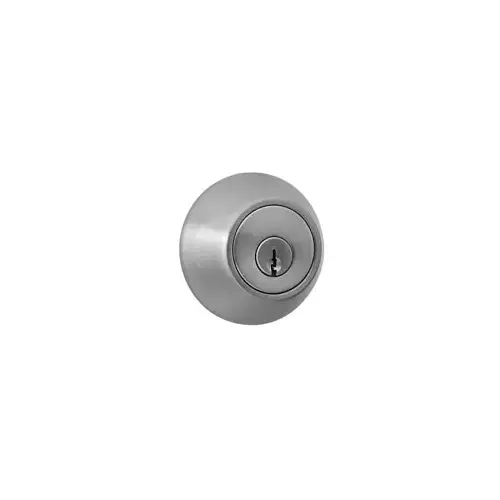

Safelock SD9300-15 SD9300 One Sided Deadbolt Satin Nickel

SD SeriesDeadbolts

Safe Lock products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Safe Lock you have selected the best quality product, backed by the best customer service available.

Specifications: Door Prep:
Single & Double Cylinder

• Cross Bore 2-1/8"
• Edge Bore 1"
• Latch Face 1" x 2-1/4"

Door Prep:
One Sided Deadbolt

• Half Cross Bore 1-5/8"
• Edge Bore 1"
• Latch Face 1" x 2-1/4

Backset:

• Adjustable 2-3/8" or 2-3/4"

Door Thickness:

• 1-3/8" - 1-3/4" doors standard.
• No thick door option

Cylinder:

• KW 5 pin

Faceplates:

• 1" x 2-1/4"
• Specify round corner, square corner or drive-in

Strikes:

• 1" x 2-1/4"
• Specify round corner or square corner

Bolt:

• 1" Throw

Door Handing:

• Non-handed

ANSI/BHMA:

• A156.2 Grade 3

ADA:

• Interior turn piece meets 4.13.9 ADA requirements

UL:

• Meets UL 3 hour fire rating for all UL functions.
• ULRef #10923

Functions: Single Cylinder:

• Deadbolt operated by key outside and thumbturn inside.
• 9100/9102UL - E0153

Double Cylinder:

• Deadbolt operated by key both sides.
• 9200 - E0143

One Sided:

• Deadbolt operated by thumbturn one side. No trim on other side. Half bore door prep.
• 9300 - E0193

• Note: Description (ANSI/BHMA functions are listed in italics)

Deadbolt Styles:

• SD

Finishes: 11P:

• Venetian Bronze

15:

• Satin Nickel

26:

• Polished Chrome

26D:

• Satin Chrome

514:

• Matte Black
