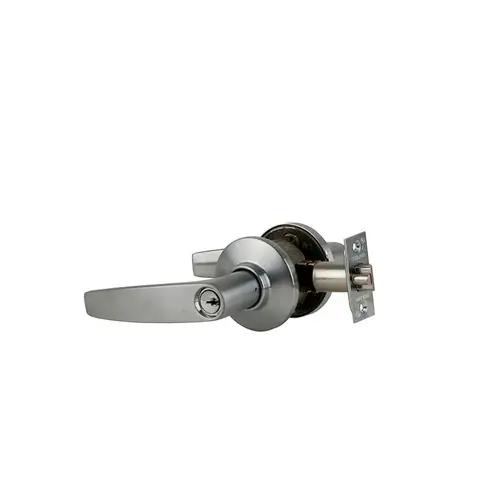

Schlage Commercial S80PD JUP 626Click To Copy S Series Storeroom C Keyway Jupiter with 16-203 Latch 10-001 Strike Satin Chrome Finish
Item #: S80PD JUP 626 by Schlage Commercial
UPC #: 043156936489
See reviewsSee reviews
In Stock
$367.20
/eachSAVE UP TO 36.72
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Storeroom, Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked for Immediate Egress
- ANSI/BHMA Certified A156.2-2011
- 1-5/8" to 2-1/8" Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
Thickness
1-3/4 In.
Color Code
626/US26D
Keyway
Schlage C
Function
80-Storeroom
Cylinder Type
P-6 Pin Conventional (Keyed 5)
ANSI Function
F86 - Storeroom
Bolt Protection
1/2 In.
Dust Box
Plastic
Latch Backset Dim
Adjustable 2-3/8 In. and 2-3/4 In.
Latch Number
16-203
Latch Type
Dead Latch
Lever/Knob Design
JUP - Jupiter
Lock Face Size
2-1/4 In. x 1 In.
Package Qty
1
Special Marks
Conventional cylinder
Strike Height
2-3/4 In.
Strike Number
10-001
Strike Type
T-Strike
Strike Width
1-1/8 In.
Series
S Series
Design
Jupiter
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 2
Finish Description
Satin Chrome
Lever Style
JUP-Jupiter
Keyblank Grouping
SCHL-C-6-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
ADA Approved
False
Keying Charges
CCAM
Warranty
3 Year Limited
Door Thickness
1-3/8" to 2"
Rose Diameter
2-9/16 Inch
Latch Throw
1/2 Inch
Strike Size
1-1/8" x 2-3/4" x 3/32"
Lever Projection
2-1/2 Inch
Standards
ANSI A156.2 Series 4000 Grade 2; UL/cUL Listed; FF-H-106C
Front Size
1" x 2-1/4"
Chassis Material
Zinc
Function Family
Storeroom
Features
Concealed Mounting Screws; Independent Heavy Duty Lever Torsion Springs for Durability and Long Life; Interlocking Chassis and Latchbolt Restricts Chassis from Rotating in Door
ADA Compliant
No
Finish Family
Satin Chrome
Manufacturer Parent
Allegion
Lever Length-Inches
4-1/4 Inch
Latch Corner
Square
Lever Style Family
Straight Lever
Lever Material
Pressure Cast Zinc
Sub-Series
S80PD-JUP-626
Product Overview
S SeriesTubular Lock
(Formerly Title 19, California State Fire Marshal Standard)
Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure.
Specifications: Handing:- Not handed, except Flair design
- 1 3/8" to 2" (35 mm-51 mm) except S40D: 1 3/8" to 1 7/8” (35 mm-48 mm)
- Universal backset latches standard, fit either 2 3/8" (60 mm) or 2 3/4" (70 mm)
- Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3/4" backset standard
- Tubular construction
- Zinc with steel cover
- Brass, chrome plated, 1/2" (13 mm) throw, deadlocking
- Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze
- T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
- Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
- Interchangeable core available, for Primus Xp cylinder, order locks less cylinder and order Primus Xp cylinder separately. Master keying, grand master keying, and construction keying.
- Commercial: Three-year limited
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass*
- 613 - Oil rubbed bronze
- 619 - Satin nickel
- 625 - Bright chrome plated
- 626 - Satin chrom plated
- *Not avalible on Jupiter or Neptune levers
- Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
- Meets FF-H-106C
(Formerly Title 19, California State Fire Marshal Standard)
- All levers with a return to door of 1/2" (64mm) or less comply.
- All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
- Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act
