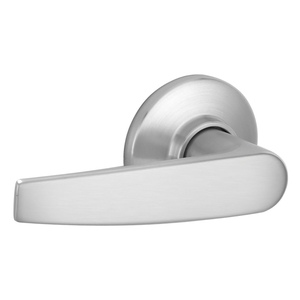

Schlage Commercial S170 JUP 626Click To Copy S170 Jupiter Single Dummy Trim, Satin Chrome

S SeriesTubular Lock

Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure.

Specifications: Handing:

• Not handed, except Flair design

Door thickness:

• 1 3/8" to 2" (35 mm-51 mm) except S40D: 1 3/8" to 1 7/8” (35 mm-48 mm)

Backset:

• Universal backset latches standard, fit either 2 3/8" (60 mm) or 2 3/4" (70 mm)

Fronts:

• Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3/4" backset standard

Lock chassis:

• Tubular construction
• Zinc with steel cover

Latch bolt:

• Brass, chrome plated, 1/2" (13 mm) throw, deadlocking

Exposed trim:

• Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze

Strike:

• T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard

Cylinder and keys:

• Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock

Keying options:

• Interchangeable core available, for Primus Xp cylinder, order locks less cylinder and order Primus Xp cylinder separately. Master keying, grand master keying, and construction keying.

Warranty:

• Commercial: Three-year limited

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass*
• 613 - Oil rubbed bronze
• 619 - Satin nickel
• 625 - Bright chrome plated
• 626 - Satin chrom plated
• *Not avalible on Jupiter or Neptune levers

Certifications: ANSI:

• Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal:

• Meets FF-H-106C

California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)

• All levers with a return to door of 1/2" (64mm) or less comply.

UL / cUL:

• All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

ADA compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act
