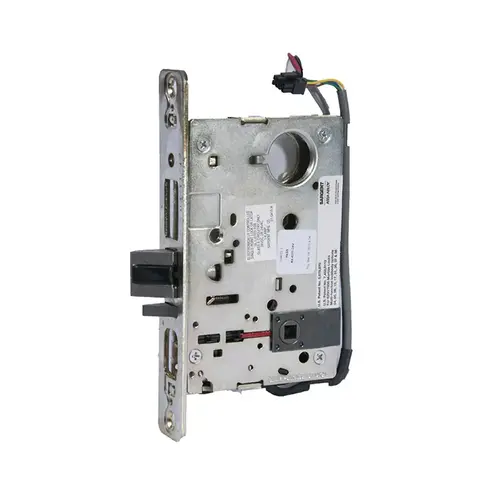

RX-8271-24V Electrified Mortise Lock Body Only, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sargent RX-8271-24V 26D RX-8271-24V Electrified Mortise Lock Body Only, Satin Chrome

Item #: RX-8271-24V 26D by Sargent

11 reviews
In Stock

$1,053.95

/each
SAVE UP TO 105.40

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • For Doors 1-3⁄4" (44mm) thick standard. For doors over 1-3⁄4" (44mm), specify door thickness and panels (if any)
  • Backset 2-3⁄4" (70mm) only
  • Case 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
  • Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)
  • Springs High carbon steel
  • Hubs for Knobs Sintered iron copper infiltrated
  • Hubs for Levers Cold forged steel
  • Hubs for Institutional Stainless steel (3- prefix)
  • Latchbolt Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch
  • Auxiliary Deadlatch Stainless steel, non-handed
  • Deadbolt One-piece hardened stainless steel, with 1" (25mm) projection
  • Hand Specify hand on order; easily field reversible (if no hand is specified RH will be provided)
  • Strike Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed (strike box optional)
  • Keys Two, nickel silver (control key or emergency key must be ordered when required)
  • Cylinder Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")). Available with SARGENT Signature, V-10, XC and KESO Security Systems
  • Masterkeying Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
  • Finishes 3, 4, 9, 10, 10B, 10BL,15, 20D, 26, 26D, 32, 32D Special finishes are available. (Contact factory for details)
  • Classroom Security 38, 39, 40, 41 Functions (All mortise trim designs available except KE/LE 3 & 4 and PT trim or FE trim with 41 function)
  • Stile 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks
  • Door Prep ANSI A115.1 modified per template (see template for 7800/8200 lockbody & trim)
  • Warranty 10 year limited warranty, 2 year limited warranty on electrified locks

Strike Number

82-0110

Package Volume

227.6367188

Amp Draw

500mA Peak, 15mA Holding

Color

Satin Chrome

Function

71-Fail Secure

Hand

Field Reversible

Grade

ANSI/BHMA Grade 1

Fire Rated

2 Hours {B}

Special Marks

Fire rated 2 Hours {B}

Strike Width

1-1/4"

Operating Voltage

12VDC/24VDC

Application

Stand-Alone Application; Hospital Application

Package Qty

1

Package Height

4.375"

Screws

Combination

Door Thickness

1-3/4 inch

Package Width

5.625"

Bolt Protection

3/4"

Color Code

626/US26D

Strike Type

Curved Lip

Origin

USA

BAA Qualified

Yes

Switch Type

RX

Base Material

Brass or Bronze

Strike Height

4-7/8"

Power

Hard Wired

Package Length

9.25"

Finish

Satin Chrome

Finish Description

Satin Chrome

Product Type

Electronic Mortise Lock

Electric Options

Request to Exit

Series

8200 Series

Warranty

10 Year Limited Warranty; 2 Year Limited Warranty on Electrified Locks; Warranty Limited to Replacement of Lockbody and Components

Aluminium Bottle Contents

Swinging

ProductType

Manual

ADA Compliant

YES

Finish Family

Satin Chrome

Strike Size

4-7/8" x 3/32"

Cylinder Material

Brass

Hub Material

Cold Forged Steel

Standards

ANSI/BHMA A156.13; UL-cUL

Case Dimensions

7/64" Thick

Function Description

Power On, Unlock Outside Lever

Front Size

8" x 1-1/4"

Function Family

Fail Secure

Peak Current

0.5A

Strike Lip

1-1/4 Inch

Minimum Stile Width

4-3/4 Inch

Electrified Features

12/24VDC at 0.015A Continuous

Features

Fast and Easy Installation; Lock is Easily Re-Handed Without Removing Parts or Opening the Lock Case; Patented Design and Construction; Pre-Assembled Components Make Installation Fool-Proof

Voltage

24V

Backset

2-3/4 Inch

Cylinder Type

Conventional

Latch Throw

3/4 Inch

Manufacturer Parent

Assa Abloy

Latchbolt Size

1" x 5/8"

Latchbolt Type

1-Piece Anti-Friction Reversible Latch

Sub-Series

RX-8271-24V-26D
