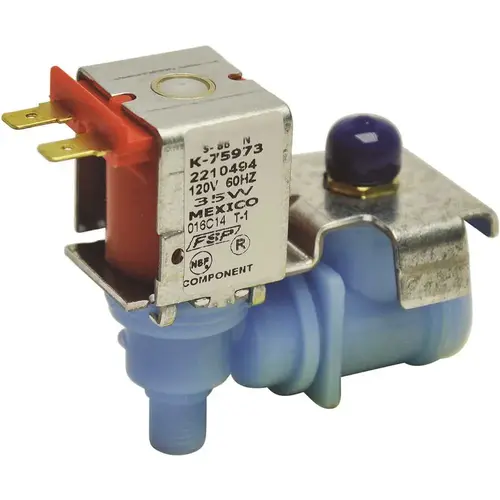

S-86 Single Water Valve Series, 1/4 in. Compression Inlet x 7/16 in. 20 UNF Outlet, Brass

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Robertshaw IMV-494 S-86 Single Water Valve Series, 1/4 in. Compression Inlet x 7/16 in. 20 UNF Outlet, Brass

Item #: IMV-494 by Robertshaw

UPC #: 662013220594

See reviews See reviews

$67.26

/each
SAVE UP TO 6.73

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Switch Type

SPST

Features

Mounting Bracket Included, Threaded

Connection

Comp

Refrigeration Controls Type

Residential Ice Machine Water Valve S-86

Product Width (in.)

2.69

Product Length (in.)

2.81

Product Height (in.)

2.81

Product Depth (in.)

3.4

Maximum Pressure

120

Indoor/Outdoor

Indoor

Full Load Amps

35 Watt

Manufacturer Warranty

1 year warranty

Pack Size

1

Warranty

1 year warranty

Material

Polypropylene

Voltage

120 Volt (60 Hz, 35 Watt)

UNSPSC

52141500

The Robertshaw S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through 2-outlets by using a single inlet for water to the door and for water to fill the icemaker. The N-86 valve has a flow rate of 130 CC in 7.5 seconds and 22-38 CC per second.

  • Direct acting armature provides high flow capacity with minimum power requirements
  • Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
  • Unique armature and seat design reduce unwanted particles from entering the armature area
  • Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
  • Bodies are made of polypropylene which provides high resistance to corrosion and mineral deposits
  • Suitable for applications using water at temperatures up to 160°F (71°C)
  • For Whirlpool 2210494 factory# K-75973
