RL Series Cylindrical Lever Lock, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

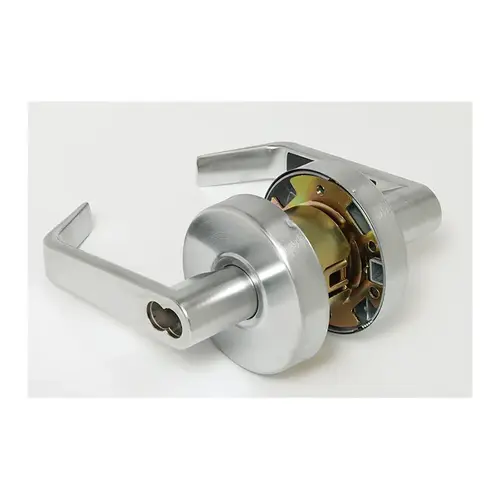

Arrow RL11SR 26D IC RL Series Cylindrical Lever Lock, Satin Chrome

Item #: RL11SR 26D IC by Arrow

See reviewsSee reviews
In Stock

$108.03

/each
SAVE UP TO 10.80

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
  • Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
  • Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
  • Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
  • Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
  • Keys – 2 brass keys Handing – Non-handed
  • Thru-bolts – Removable thru-bolts standard on RL Series
  • Packaging – 10 per case
  • Warranty – Five Year Mechanical Warranty

Base Material

Brass or Bronze

Strike Width

1-1/4"

Strike Type

T-Strike

Strike Number

R62

Strike Height

4-7/8"

Special Marks

Small format interchangeable core, Fire rated 3 Hours {A}

Screws

Combination

Rose/Escutcheon Design

3-5/16 In. Diameter

Product Width

2.4375"

Product Length

4.75"

Product Height

3.3125"

Package Qty

1

Lock Face Size

2-1/4" x 1-1/8"

Lever/Knob Design

SR - Sierra

Latch Type

Deadlatch

Latch Number

R71

Latch Backset Dim

2-3/4"

Bolt Protection

1/2"

ANSI Function

F109

Package Width

6.75"

Package Volume

183.515625

Package Length

7.25"

Package Height

3.75"

Fire Rated

3 Hours {A}

Cylinder Type

SFIC Less Core-Small Format Prep

Function

11-Entrance/Office

Color Code

626/US26D

Color

Satin Chrome

Hand

Non-Handed

Thickness

1-3/8" - 1-3/4"

Grade

ANSI/BHMA Grade 2

Finish

Satin Chrome

Finish Description

Satin Chrome

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Lever Style

SR-Sierra

Product Type

Cylindrical Lock

Rose/Escutcheon Trim

Round Rose

Backset

2-3/4 Inch

Series

RL Series

Projection

2.4375

Lever Length

4.7500

Door Thickness

1-3/8" to 1-3/4"

Bore Size

2.1250

ADA Approved

False

Application

Multi Family Housing Markets; Light Commercial

Warranty

5 Year Mechanical

Handle Type

Lever

Rose Diameter

3-5/16 Inch

Latch Throw

1/2 Inch

Door Cross Bore

2.125 Inch

Standards

ANSI A156.2; UL Listed

Cylinder Type Used

Small Format Interchangeable Core

Function Description

Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.

Front Size

1" x 2-1/4"

Function Family

Entry/Entrance/Office

Latch bolt size

7/8 Inch

Strike Lip

1-1/4 Inch

Product Projection

2-7/16 Inch

Trim Material

Brass (Rose); Pressure Cast Zinc (Lever)

Features

Removable Through Bolts; Guarded Latchbolt on All Locking Functions

Manufacturer Parent

Assa Abloy

Lever Length-Inches

4.75 Inch

Latch Corner

Square

Latchbolt Size

7/8 Inch

Knob/Lever Size

4-3/4 Inch

Latch Bolt Material

Brass

Lever Style Family

Straight Return Lever

Sub-Series

RL11-SR-26D-IC

ADA Compliant

YES

Finish Family

Satin Chrome

Strike Size

1-1/4" x 4-7/8"

Cylinder Material

Solid Brass
